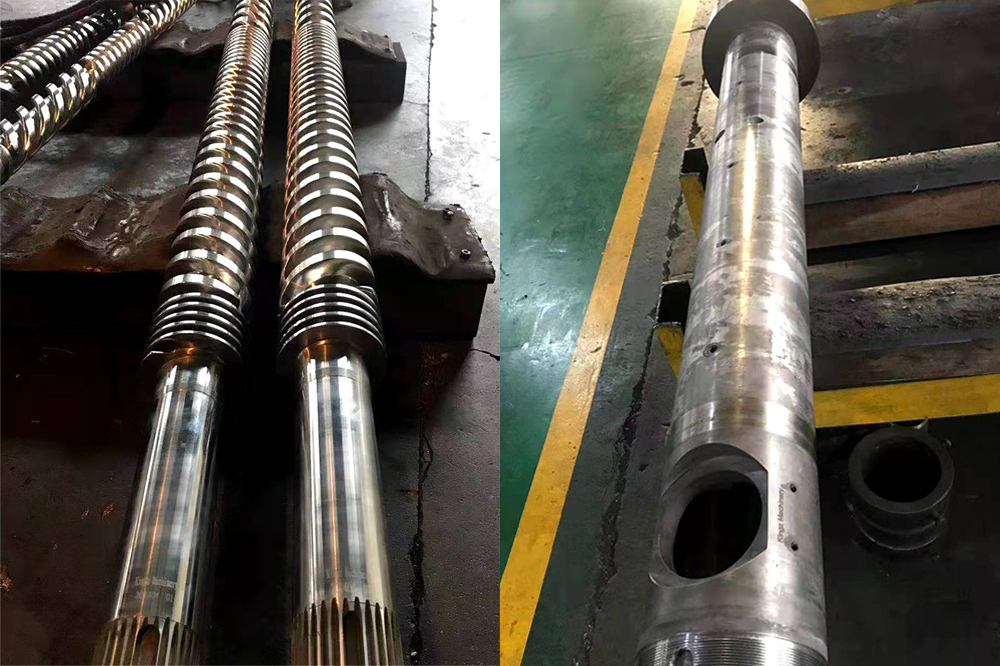

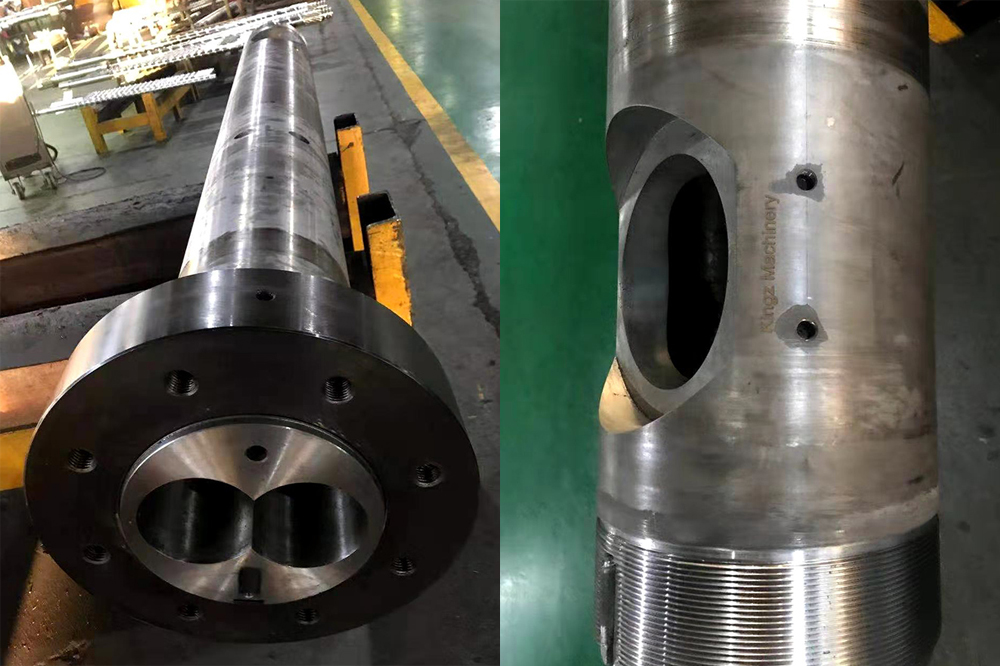

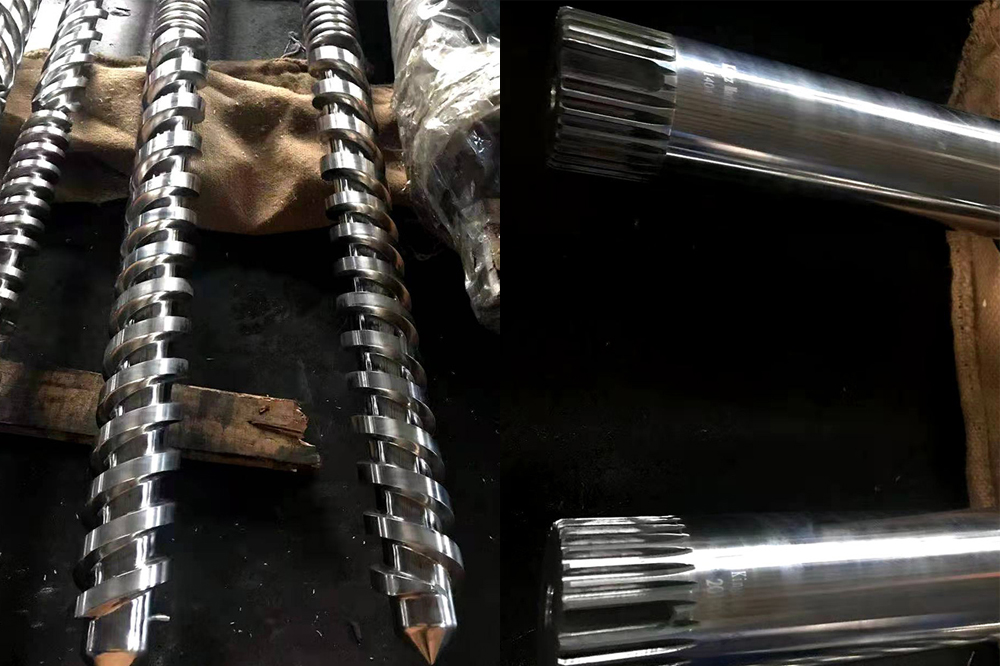

Screw and Barrel Weber DS10P
Kingz Machinery is specialized at high quality screw barrels, such as Screw and barrel DS10P, screw and barrel Weber DS10P, screw and barrel for Weber DS10P twin screw extruder, screw and barrel 105-17D,…..
Weber DS10P
Twin screw extruder
Screw diameter 105mm
LD 17/1
Technical specification:
Screw’s and barrel’s material: high quality alloy steel: 38CrMoAlA;
At material outlet section: with hard alloy slots. Slot length: 300mm
Process: advanced nitriding process
Hardness after Hardening & Tempering: HB280-320
Nitrided hardness: HV900-1000(HV940=HRC68)
Nitrided case Depth:0.45-0.8mm
Nitrided brittleness: Less than Grade 2
Surface roughness: Ra 0.4
Screw straightness: 0.015mm
Alloy hardness: HRC 50-65
Alloy depth:0.8-2.0mm
Packing size and weight:
DS10P screw: 2430*200*210mm, 200kg
DS10P barrel: 2090*450*490mm, 466kg
