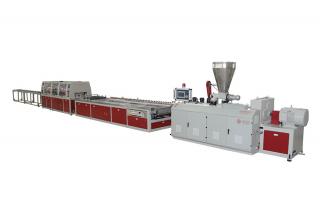

Based on our high profession at extrusion equipment, and according to customer’s requirement, we developed extrusion lines specially for PVC ceiling panel and PVC wall panels. This high filler extruder can not only produce high quality panel products, but also lower the material cost.
Characters:
1. At the formula, it can use up to 250 parts of CaCO3.
2. Product has good quality, smooth surface and even plastification.
3. With our new technology, for single strand, our extrusion speed can be 8m/min.
Besides high CaCO3 content, our machine can also achieve high speed production. Our PVC panel extrusion line can be up to 10m/min.
According to different customers requirement, we have the following equipment for panels:
Extruders:
SJZ48/113, SJZ48/115, SJZ48/118;
SJZ55/110, SJZ55/120, SJZ55/125;
SJZ65/132, SJZ65/138;
SJZ80/156
Model |
SJZ48 |
SJZ55 |
SJZ65 |
SJZ80 |
Motor power, kw |
18.5 |
22 |
37 |
55 |
Screw diameter, mm |
48/113,115,118 |
55/110, 120, 125 |
SJZ65/132,138 |
SJZ80/156 |
Screw rotation speed, rpm |
34.7 |
34.7 |
34.7 |
34.7 |
PVC output capacity, kg/h |
80-100 |
100-150 |
150-250 |
350-450 |
Down stream equipment:
YF300, YF400, YF600, YF1000, YF1200.
Most porpular lines are:
SJZ48/113-YF300;
SJZ55/110-YF300;
SJZ65/132-YF300;
SJZ65/132-YF400;
SJZ65/132-YF600;
SJZ80/156-YF1000;
SJZ80/156-YF1200;
SJZ92/188-YF1200.
Standard PVC ceiling panel extrusion line video: https://youtu.be/0o3SowFEkAI
10m/min PVC ceiling panel production video: https://youtu.be/E0gZfDb4lQU

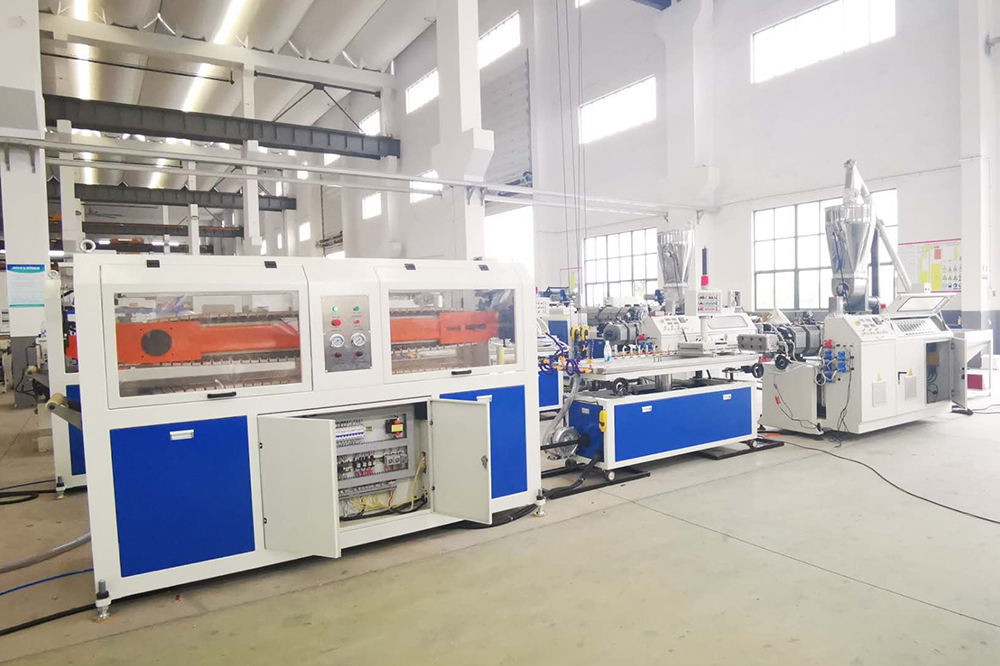

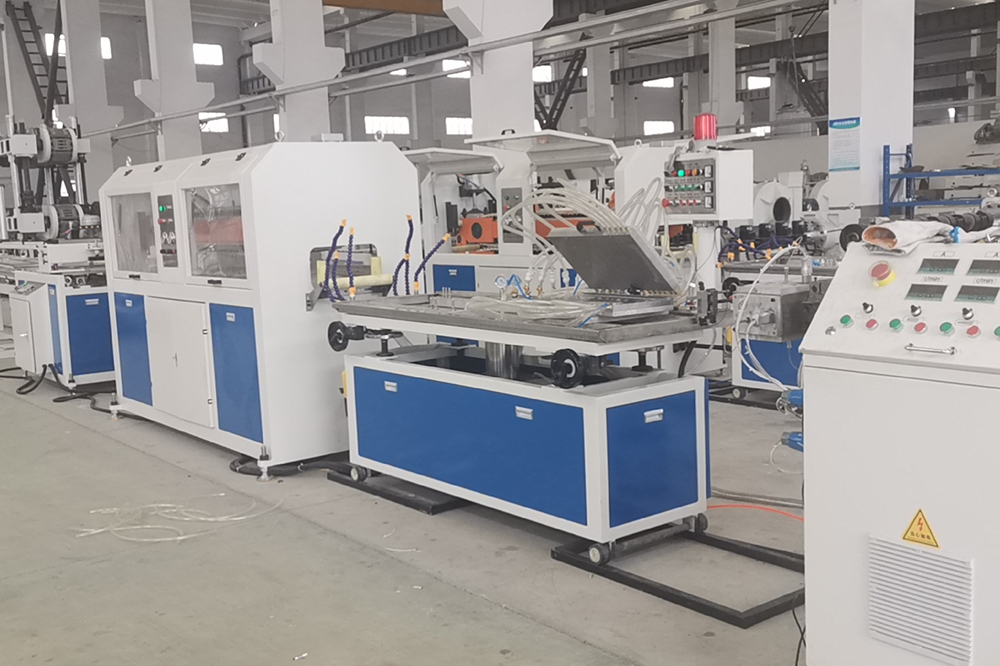

Customer's PVC ceiling panel and PVC wall panel workshop:
With special Infrared seamless stabilizer, the panels can be well connected seamlessly:
Silver strip embedded:
In-line hot stamping and lamination device

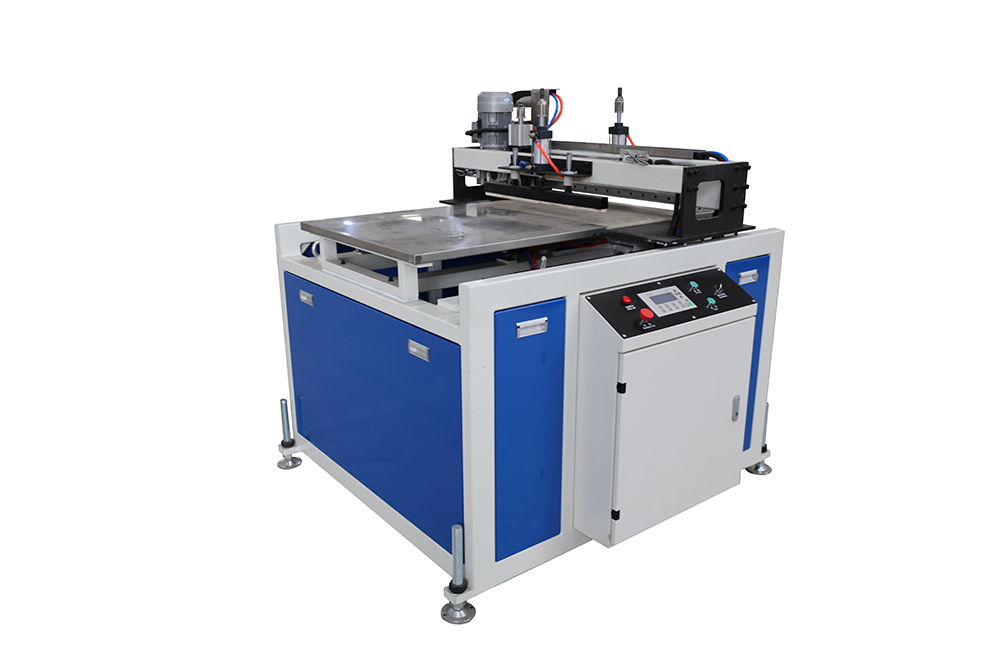

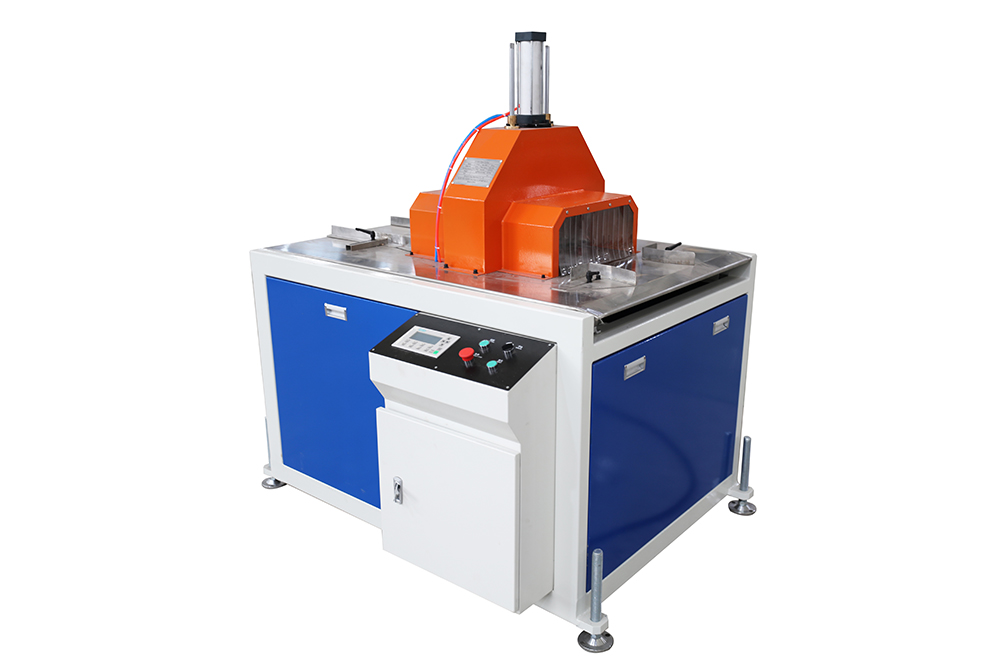

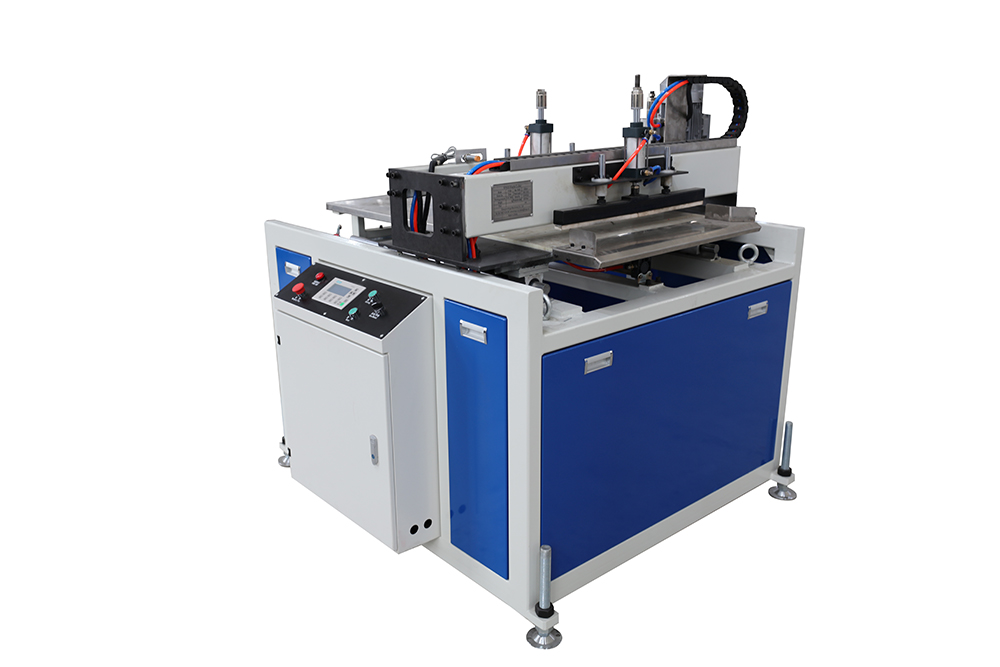

Professional cutter for PVC panels:
Robot, now we use automatic taking-out robots to save labors:
The panels made by our machines:
This kind of panels are widely used at Wall decoration, Ceiling decoration, and Bathroom decoration.
The surface can be made by transfer printing, printing, or lamination method.
