PVC Wide Door Extrusion Line, PVC Window Sill Extrusion Line

Specification
Machine Pictures
Products

PVC Wide Door Extrusion Line, PVC Wide Board Extrusion Line

Our PVC wide door extrusion line is used to produce all kinds of PVC doors, PVC wide board, PVC window sill, PVC wall panel, PVC cabinet board, PVC kitchen board, PVC cabinet board, PVC kitchen cabinet board, PVC livestock partition board, PVC plank, PVC planking, PVC livestock board, PVC livestock dividing board and etc. It features high degree of automation, stable working, easy operation, high production efficiency.

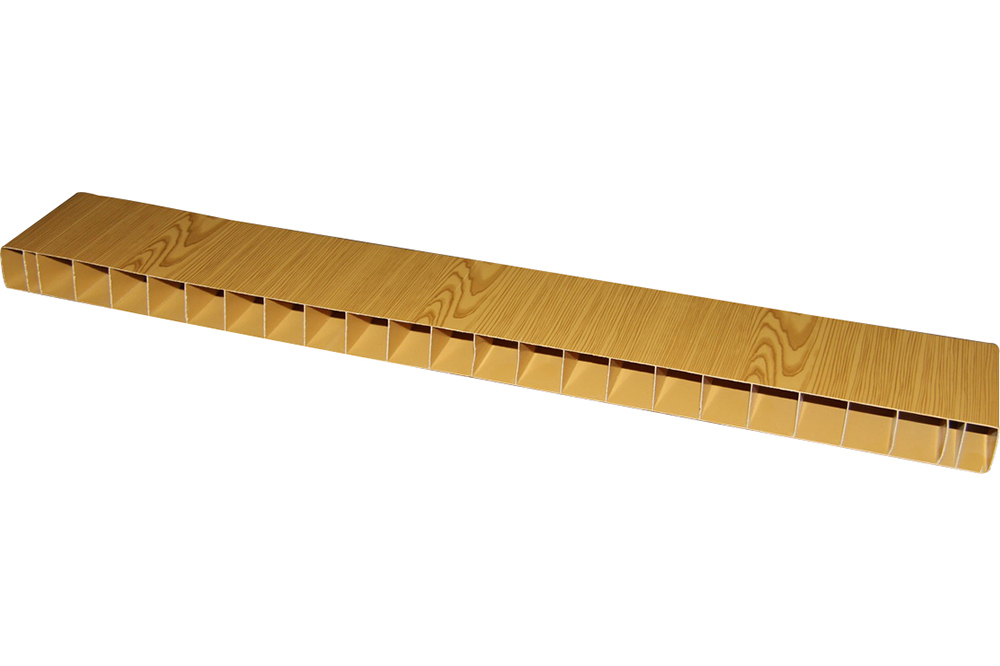

The panels produced by our machine, are easy to install, easy to maintain, 100% water proof, heat insulation and sound proofing. The wall panel surface can be treated by transfer-printing, printing or lamination method.

The width of panel can be 400mm, 500mm, 600mm, 1000mm, 1200mm.

Extruder model	SJZ65/132	SJZ80/156	SJZ92/188
Motor power, kw	37	55	110
Screw diameter	65/132	80/156	92/188
Screw rotation speed	34.7	34.7	34.7
Output capacity, kg/h	150-250	250-400	700-800
