Screw and Barrel CMT45/97
Kingz Machinery is specialized at high quality screw barrels. We are professional manufacturer of Screw and barrel CMT45, Milacron CMT45, screw and barrel CMT45/97, screw and barrel SJZ45/97 and etc.

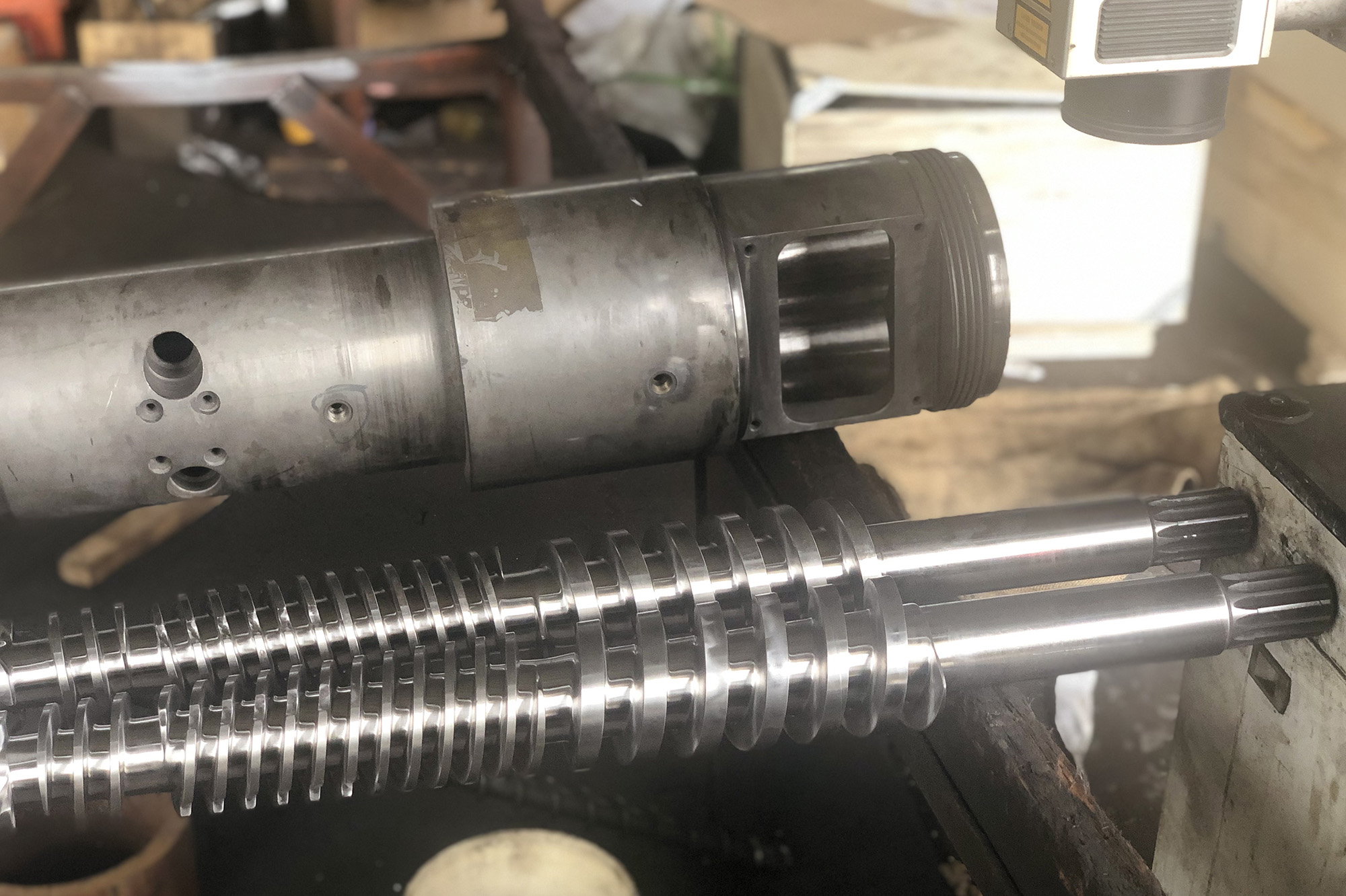

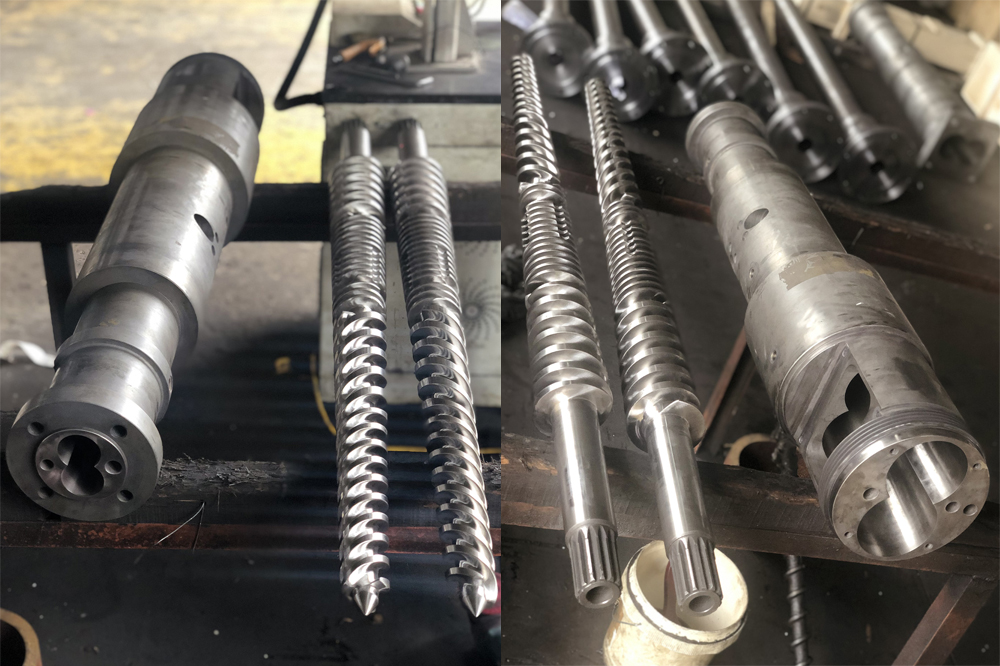

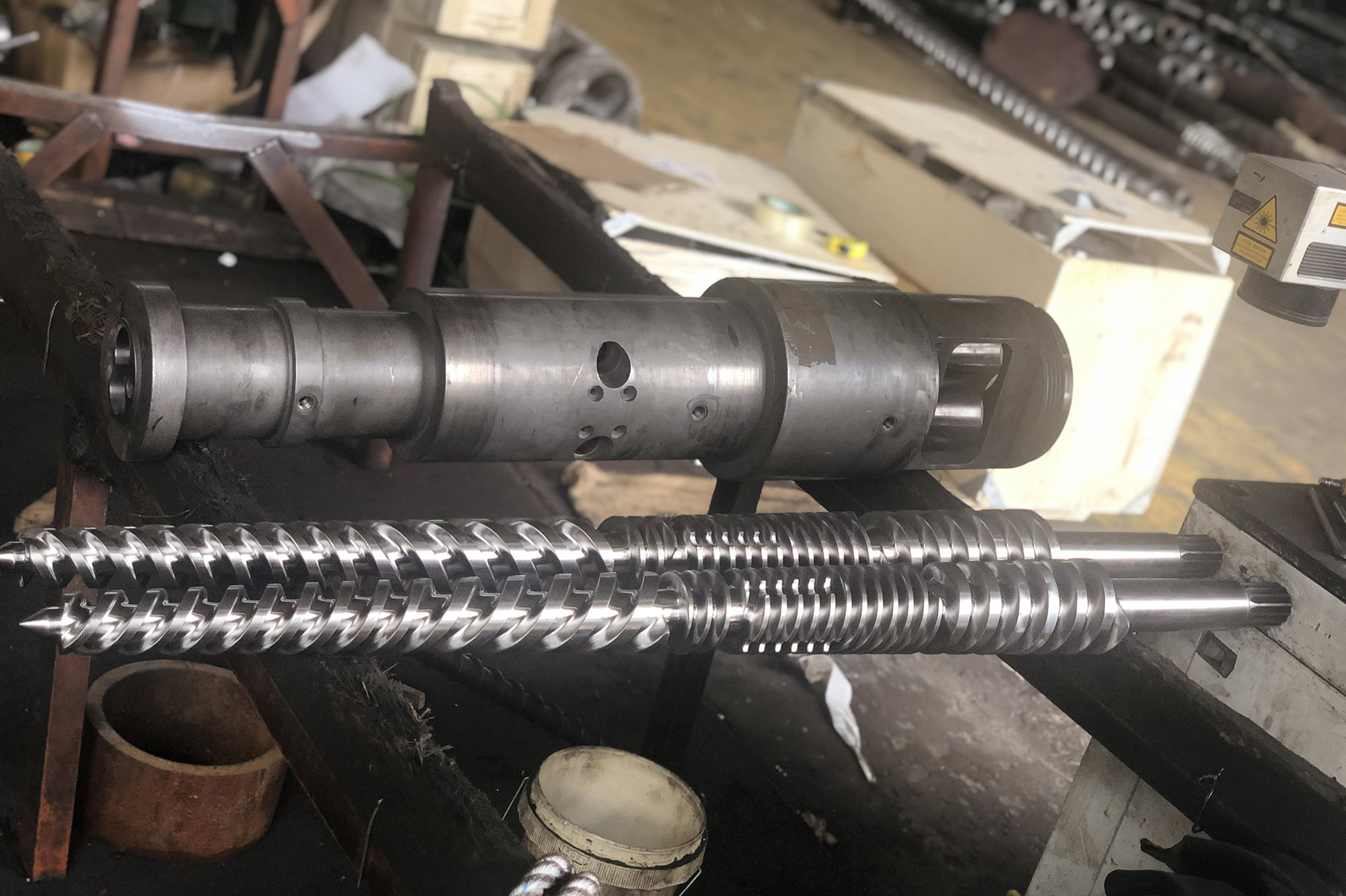

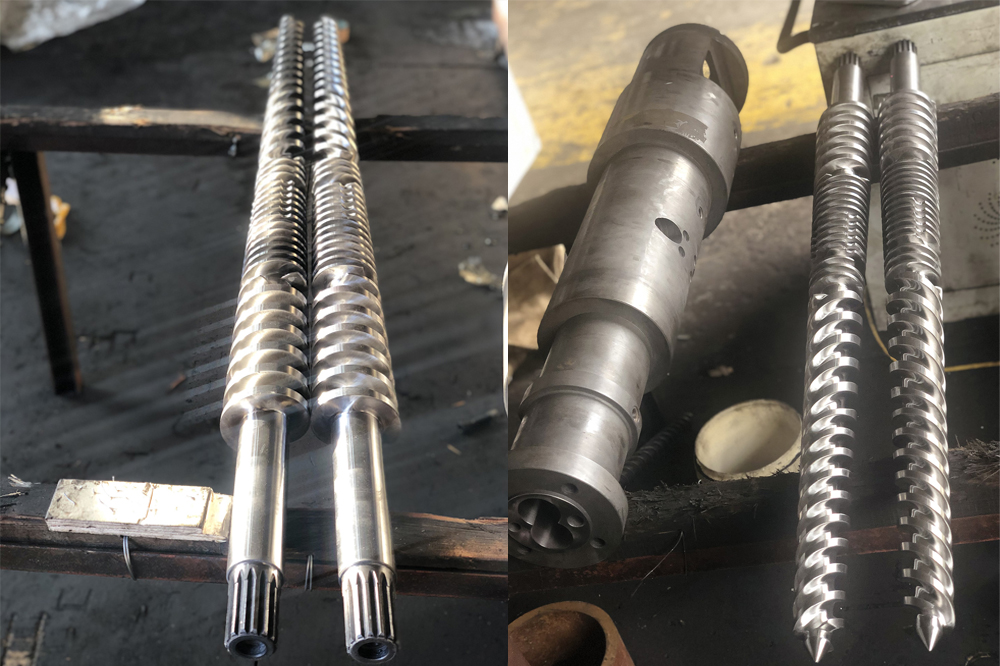

The screw and barrel includes:
Screws 2 pcs. Inside is water cooling.
Barrel 1 pc. Outside is air cooling.
Both screw and barrel output zone are bimetallic.
Accessories: Stop ring + washers to adjust the space between screw and barrel
Technical specification:
Material: high quality 38CrMoAlA
Process: advanced nitriding process
Hardness after Hardening & Tempering: HB280-320
Nitrided hardness: HV900-1000(HV940=HRC68)
Nitrided case Depth:0.45-0.8mm
Nitrided brittleness: Less than Grade 2
Surface roughness: Ra 0.4
Screw straightness: 0.015mm
Alloy hardness: HRC 50-65
Alloy depth:0.8-2.0mm
CMT45/97 packing size: 1395*275*305mm
CMT45/97 gross weight: 181kg.
