PC Hollow Sheet Extrusion Line

PC hollow sheets are widely used in the skylights, coverings of office building, lobby, marketplace, stadium and public utilities. PC hollow sheets are durable, versatile, and easy to work with. Polycarbonate panel is one of the strongest greenhouse coverings. Polycarbonate, is a rigid plastic that is almost as transparent as glass. It is available in corrugated single layer or flat twin-wall thicknesses, and is easily cut and installed. The air pockets between the two walls act as an insulator and light transmission is very good through this material. Whether you're building a greenhouse or replacing existing greenhouse covering, PC hollow sheets is the ideal choice for your project.

Equipment details:

Raw material	PC pellets
Product width	600, 1050, 2100mm
Product thickness	4.0-20.0mm
Layer structure	ABA or AB
Output capacity	400kg/hour
Line speed	2-6m/min

Machine specification:

Integrated drying, mixing and loading system	1set
SJ 120/35 Single screw venting extruder	1set
SJ 45/30 Single screw co-extruder	1set
Hydraulic screen changer	1set
Melt pump	1set
Feedblock	1set
T-die	1set
Calibrator	1set
No.1 Take off	1set
Infrared annealing oven	1set
No. 2 Take off1	1set
Protective film pay-off unit	1set
Cross cutting unit	1set
Stacker	1set
Electric control system	1set

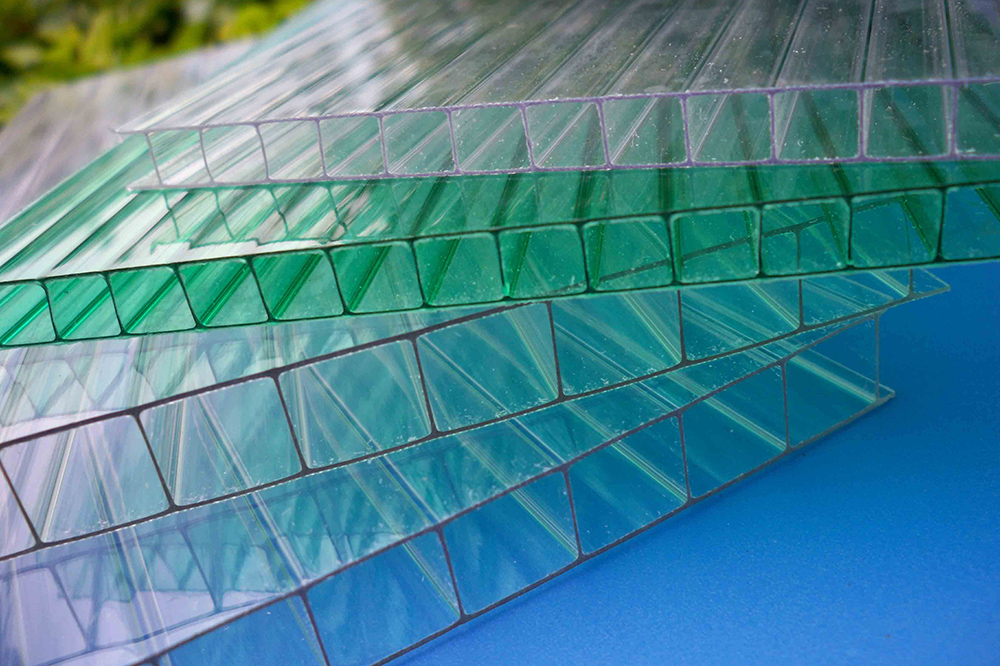

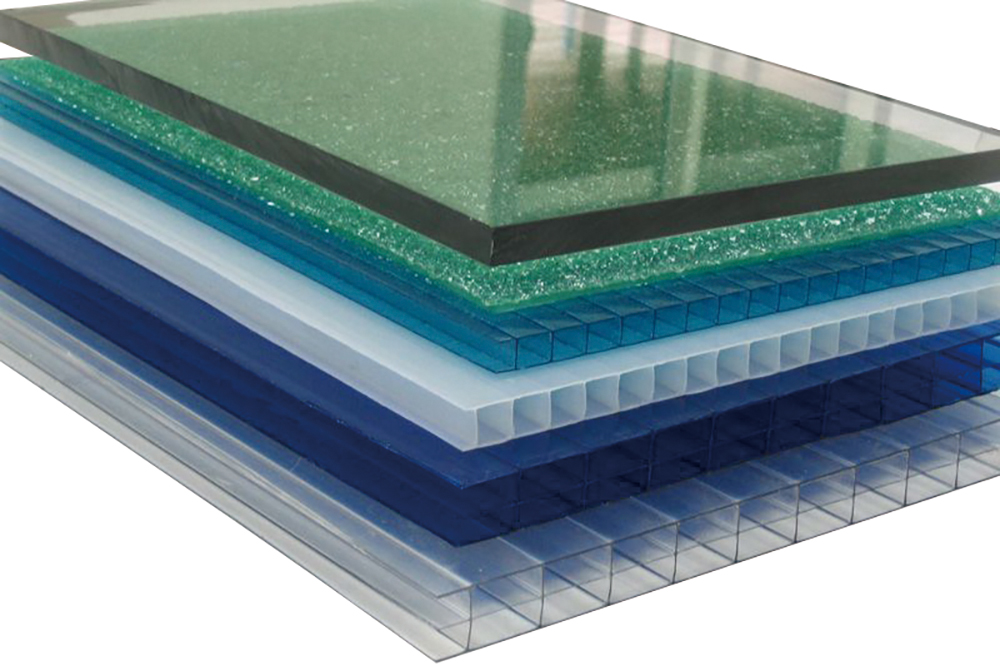

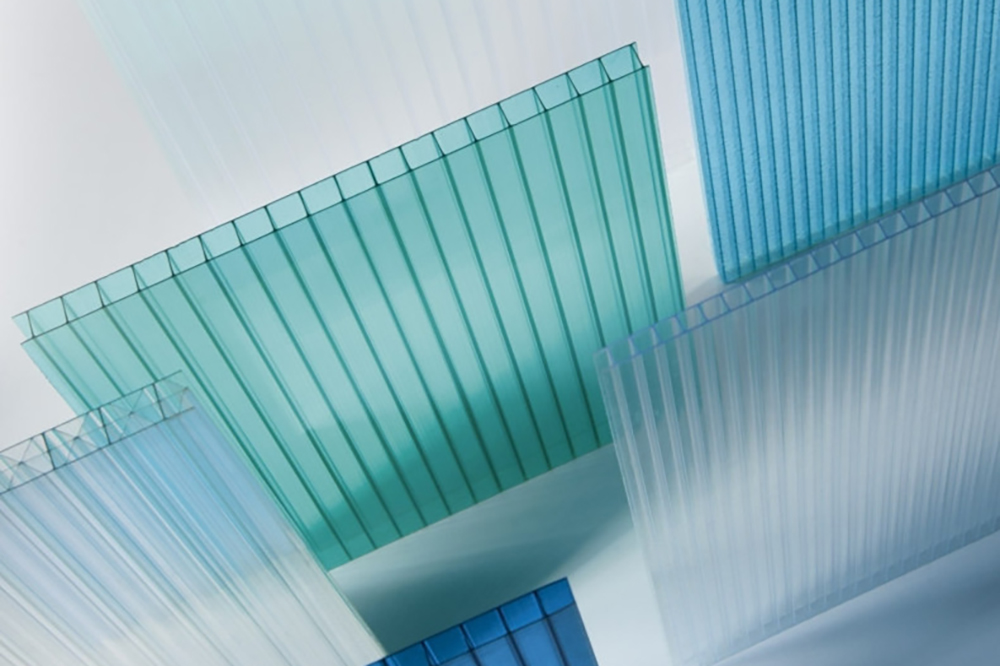

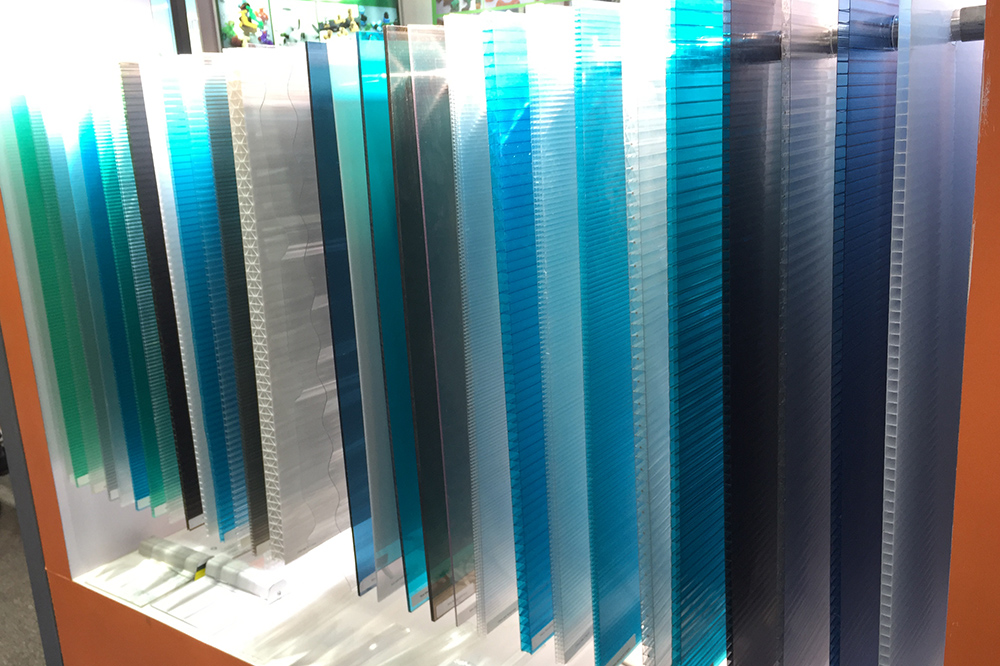

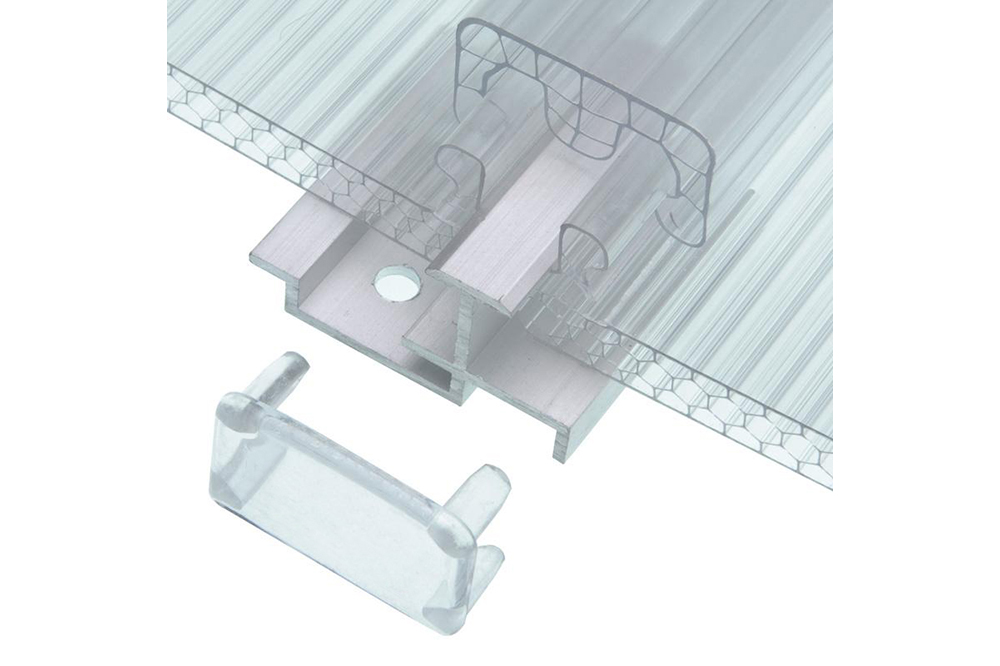

The PC hollow sheet, PC sunshine sheet, PC sunshine board, twin wall polycarbonate sheet made by our machines:

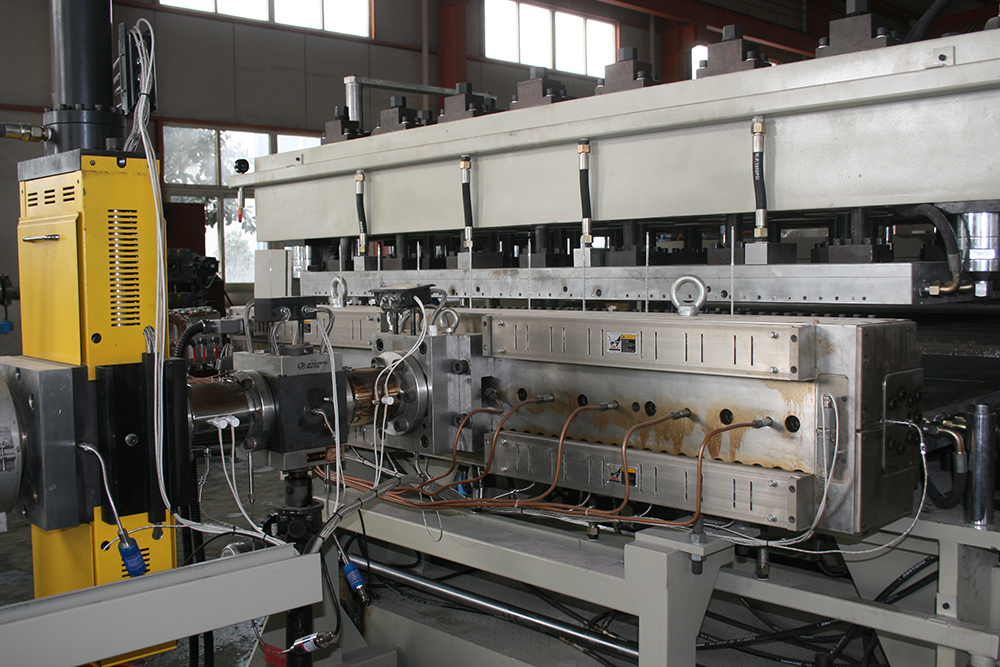

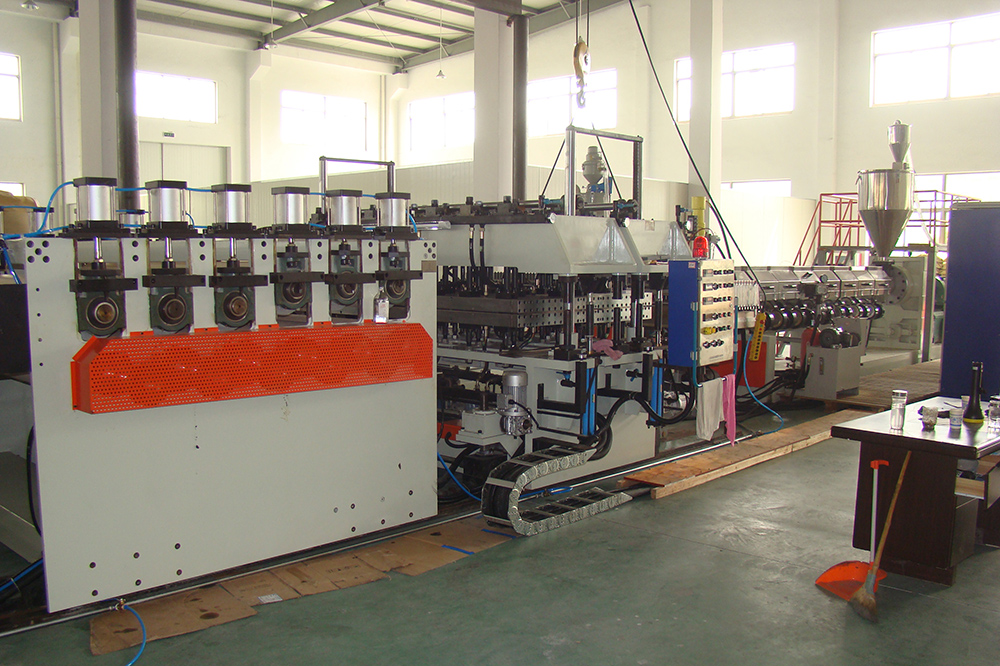

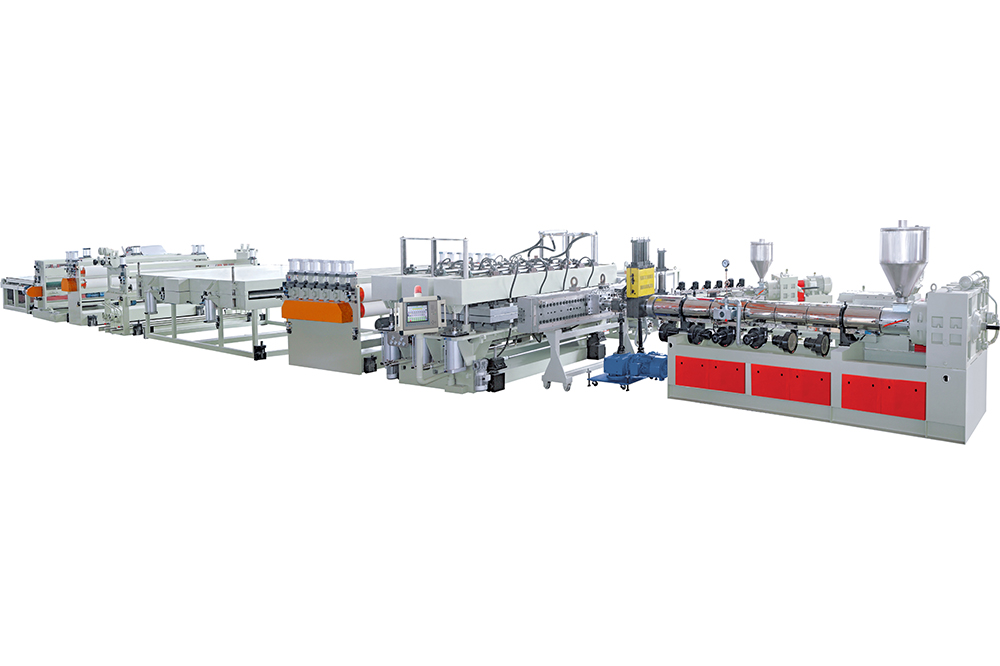

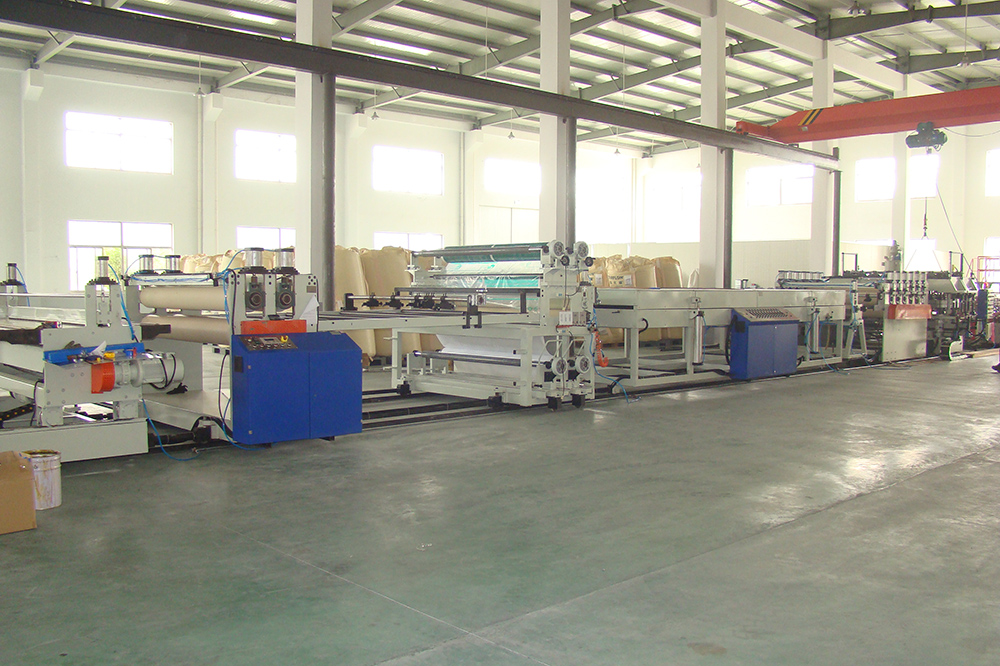

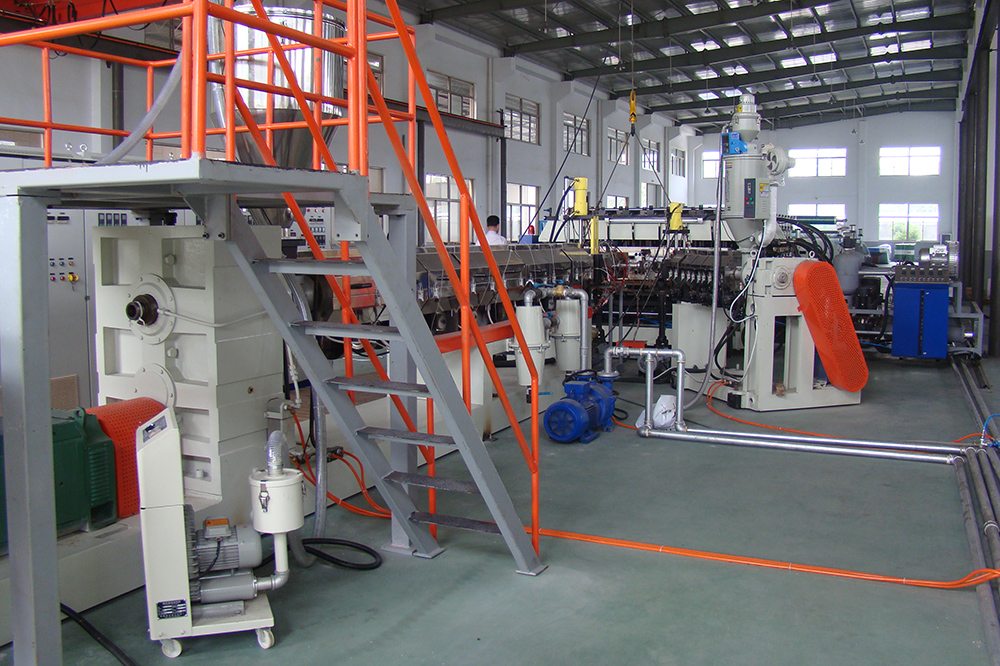

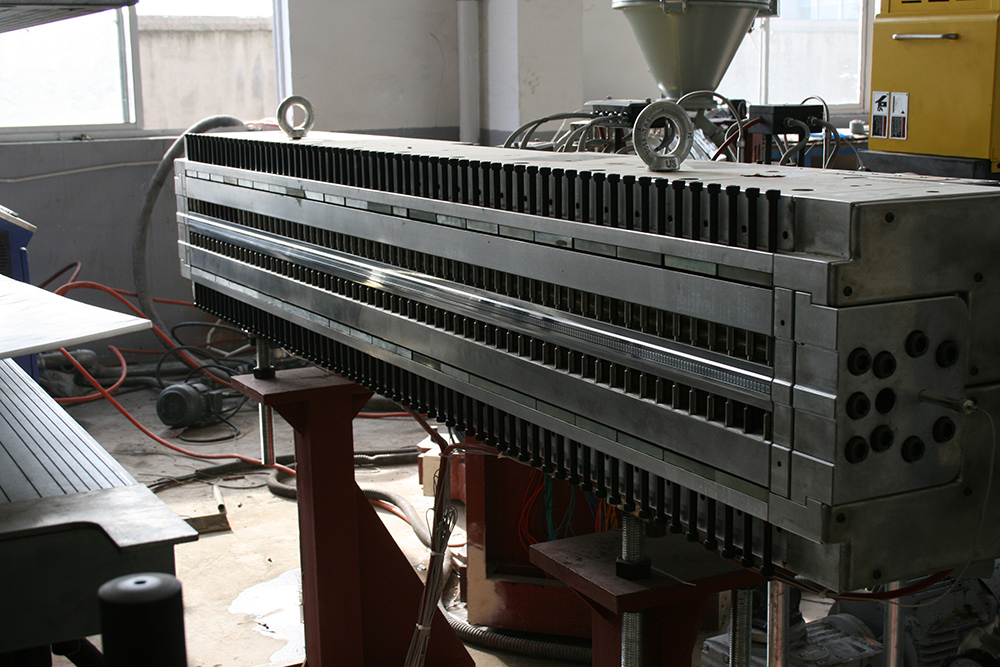

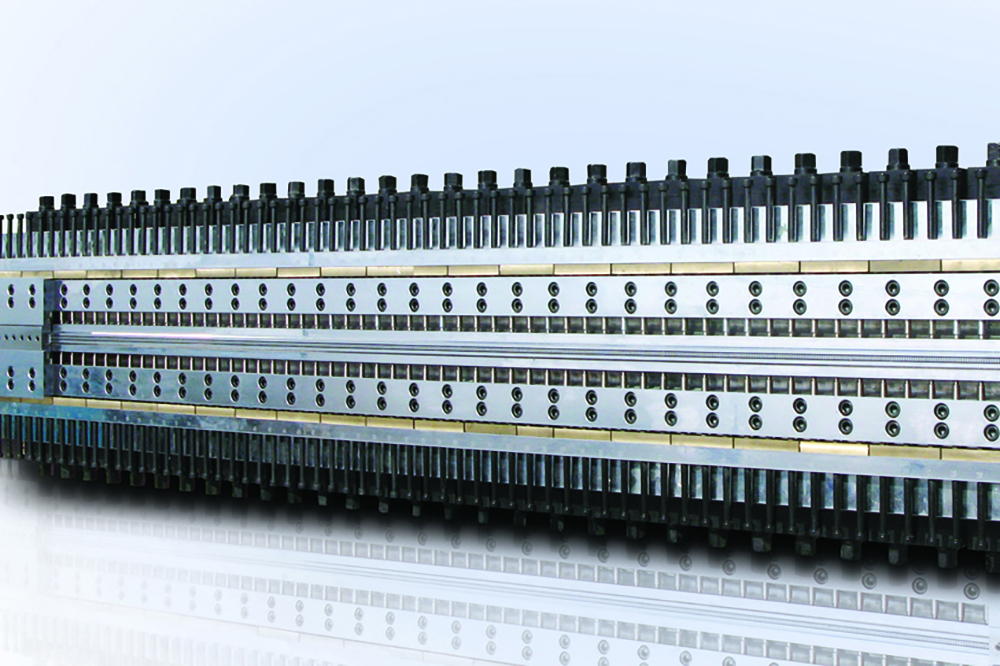

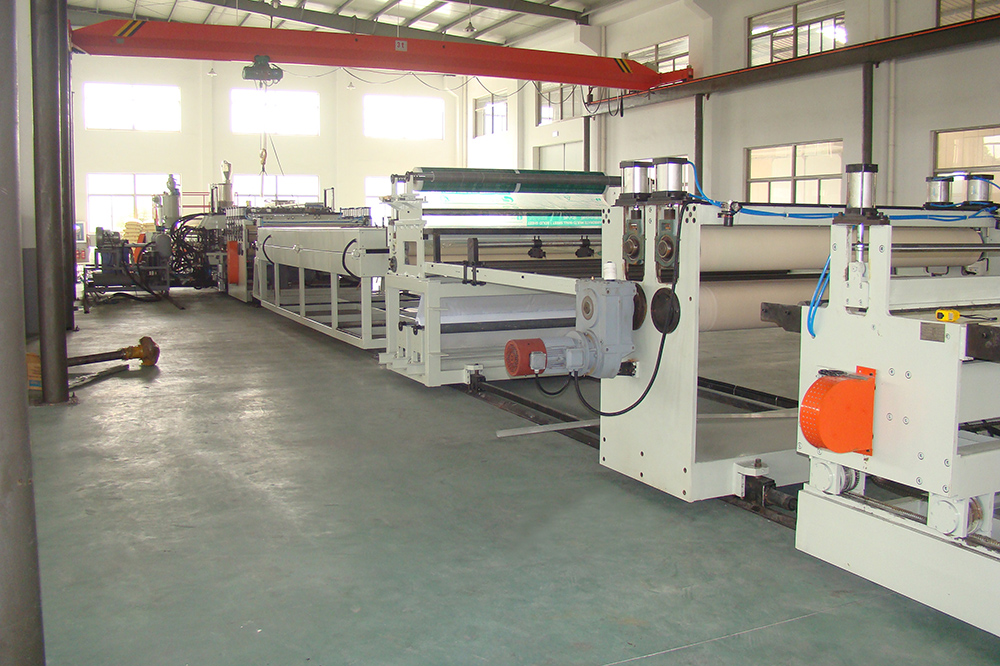

PC hollow sheet profile extrusion line pictures:
