PP Hollow Sheet Extrusion Line


PP hollow sheet is an ideal material for packing, UV and screen printing, insulator, cushion material, tray, exhibition booth decoration and etc. It is light weight, high strength, anti-corrosive, water proof, moisture proof, easy to be fabricated, shock absorption and recyclable.


Equipment details:

Raw material

PP pellets

Product width

1000-3000mm

Product thickness

2.5-20.0mm

Layer structure

A or ABA or AB

Output capacity

800kg/hour

Line speed

2-18m/min


Machine specification:

Integrated drying, mixing and loading system

1set

SJ130/38 single screw venting extruder

1 unit

Hydraulic screen changer

1 unit

Metering pump

1 unit

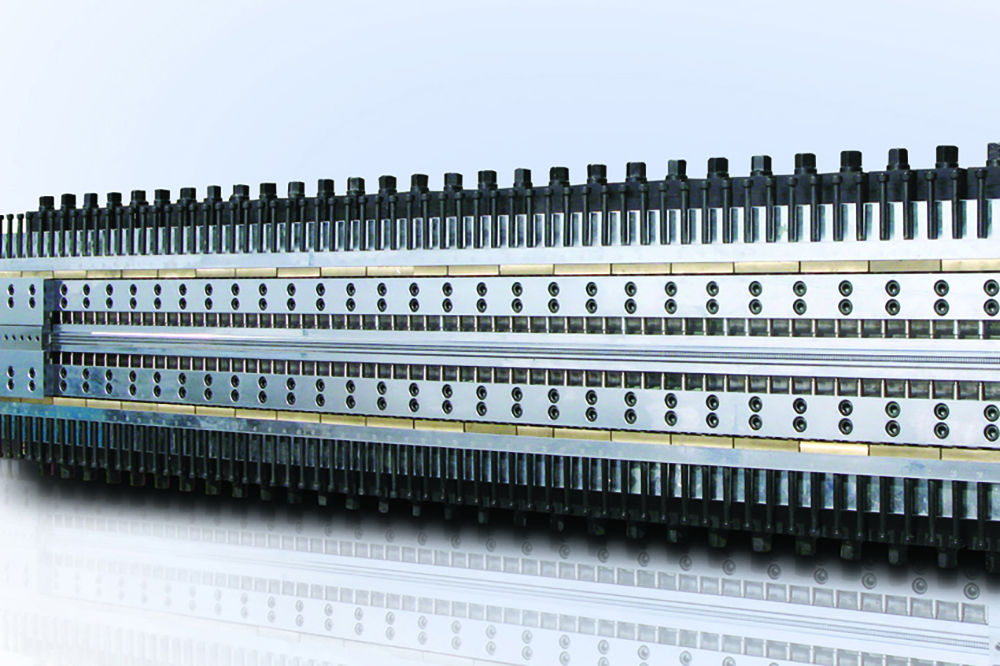

Mould

1 set

Vacuum calibrator (two stage calibration)

1 unit

Air cooling chiller

1 unit

No.1 Take off

1 unit

Infrared annealing oven

1 unit

Cooling supporting frame

1 unit

Two side forced cooling device

1 set

No. 2 Take off

1 unit

Longitudinal edge trimming unit

1 set

Transversal cutter

1 set

Stacker

1 unit

Electric control system

1 set

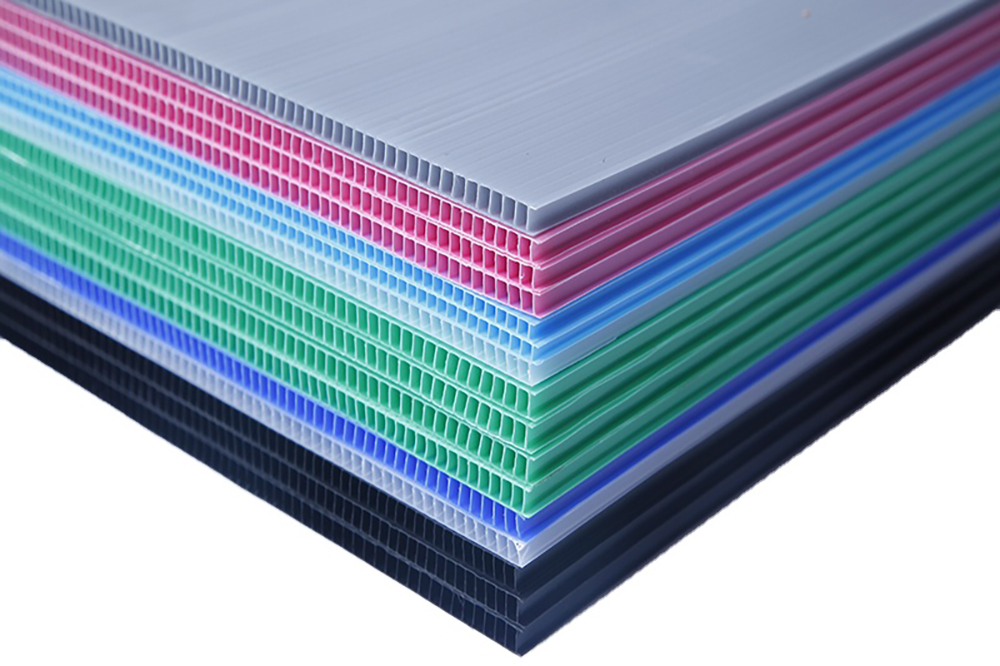

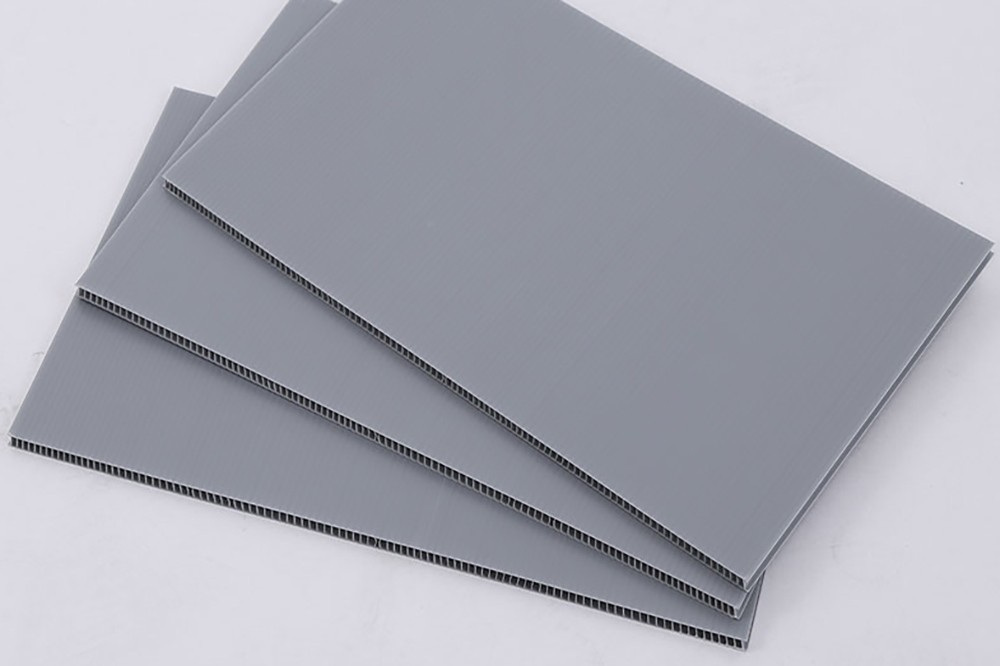

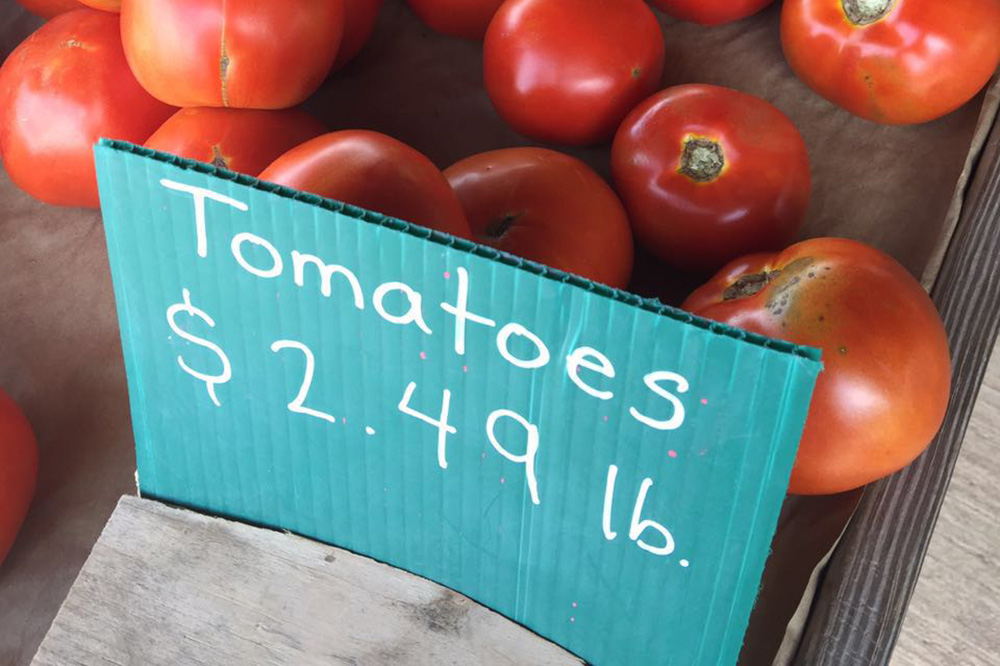

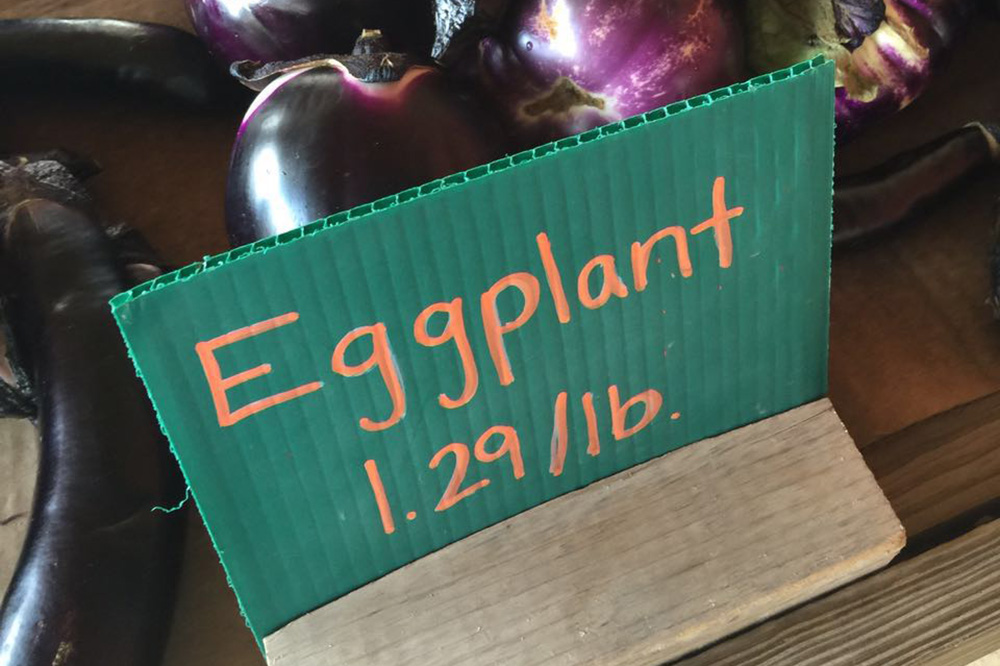

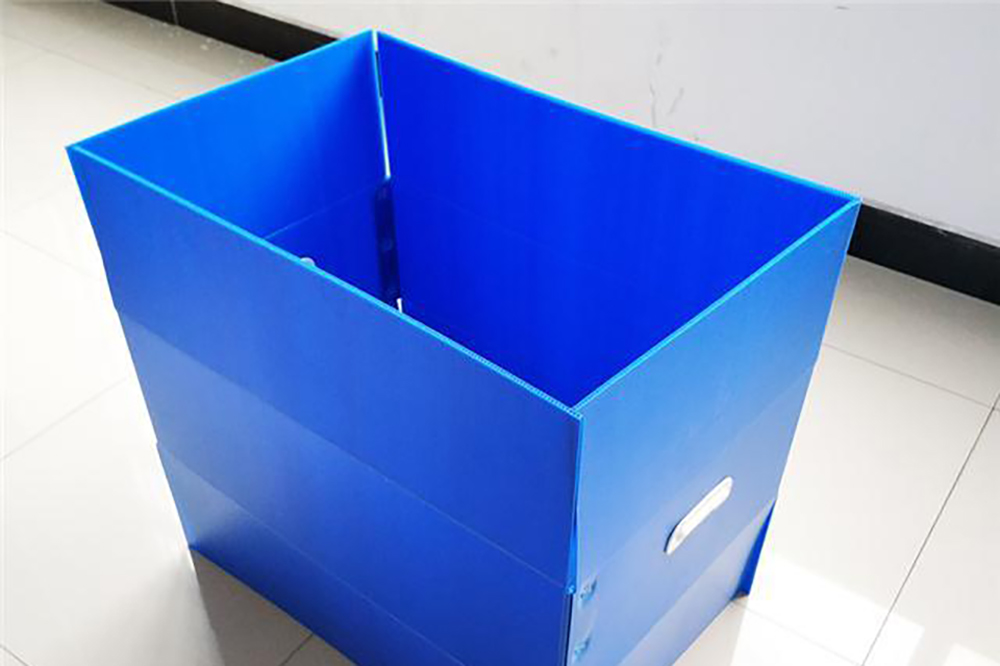

The PP hollow sheet, PP board, made by our machines:

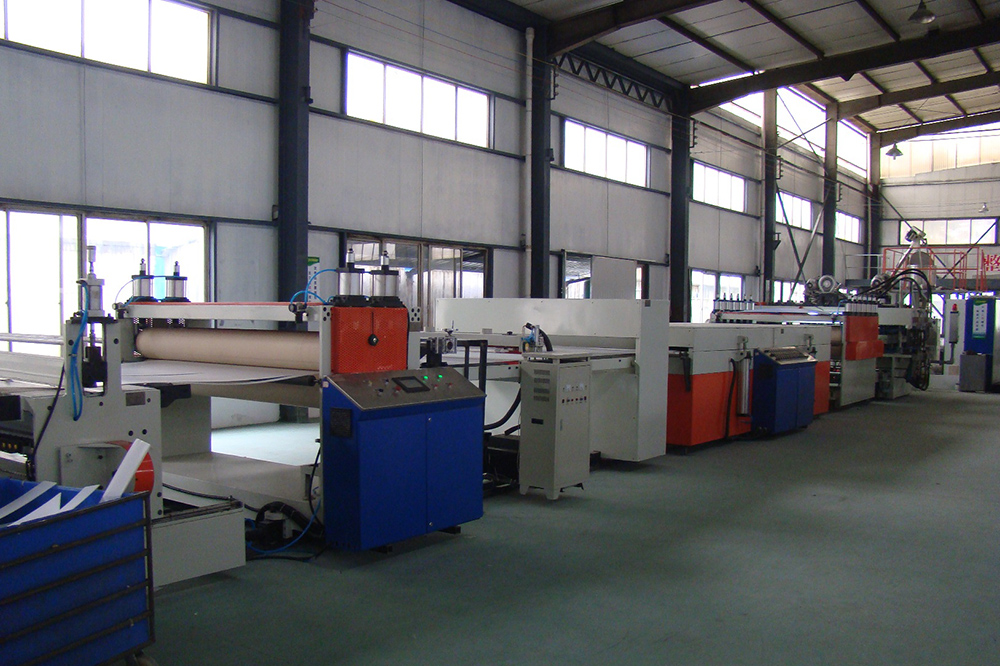

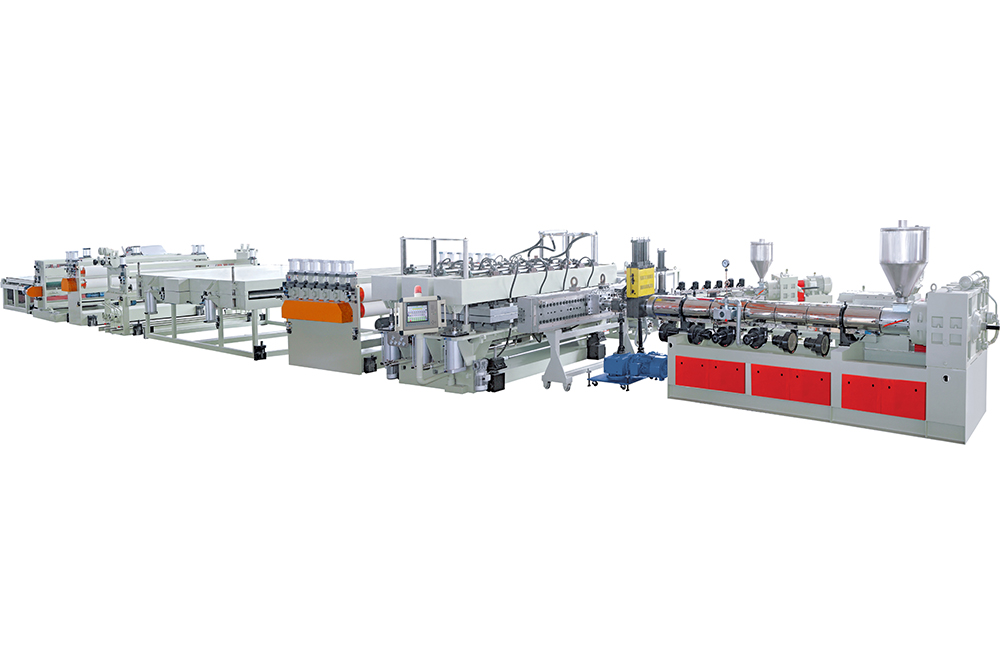

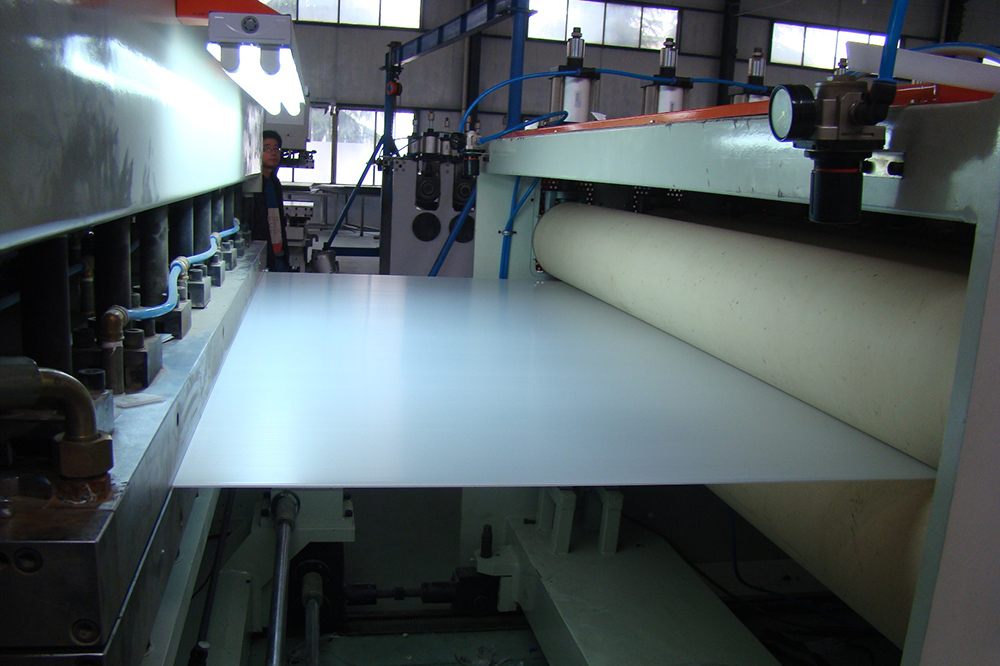

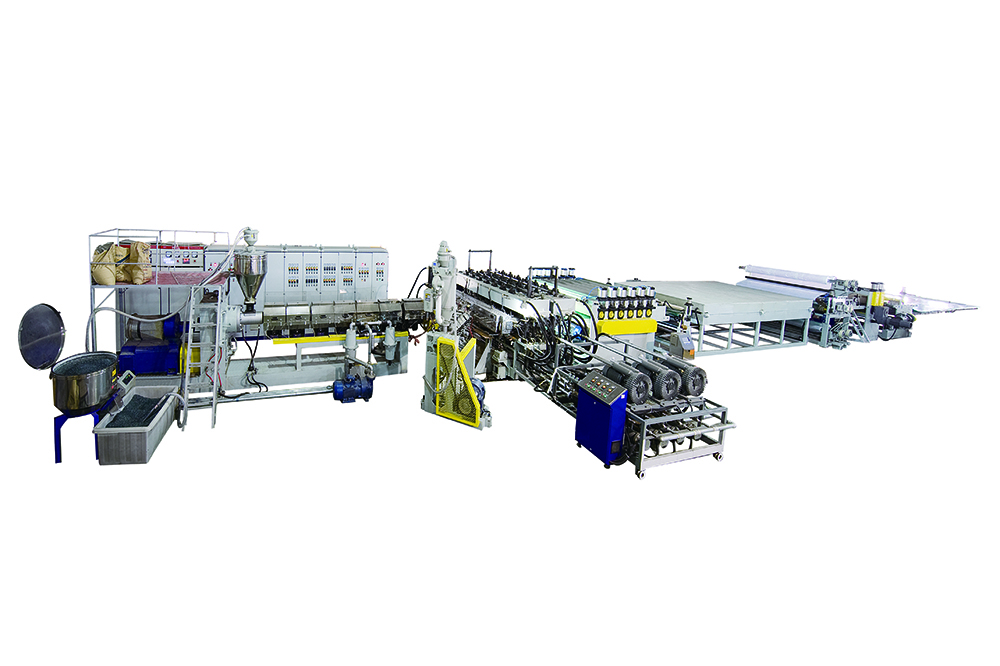

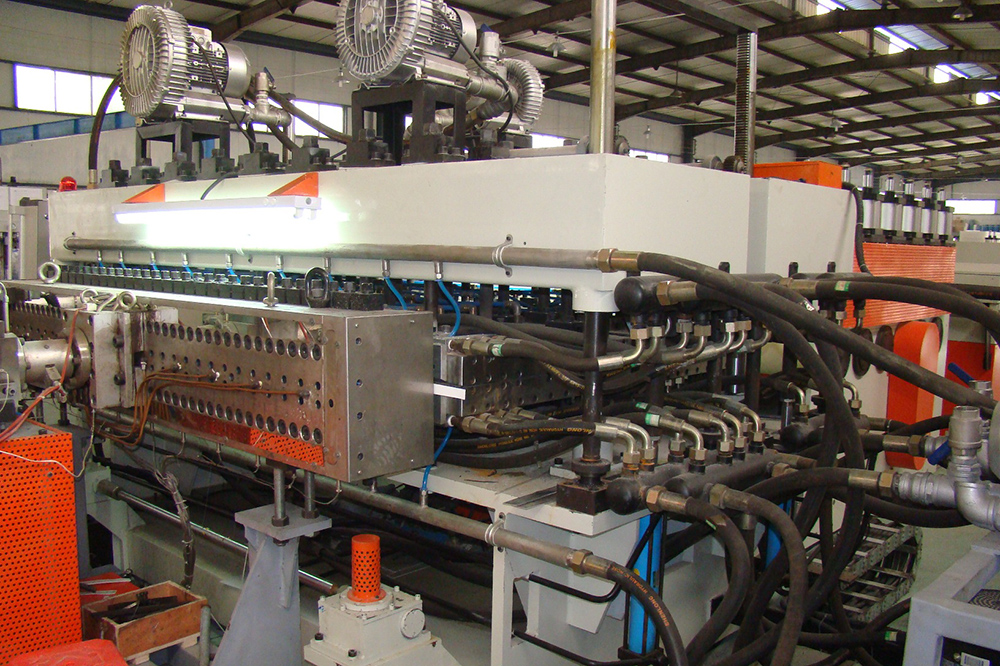

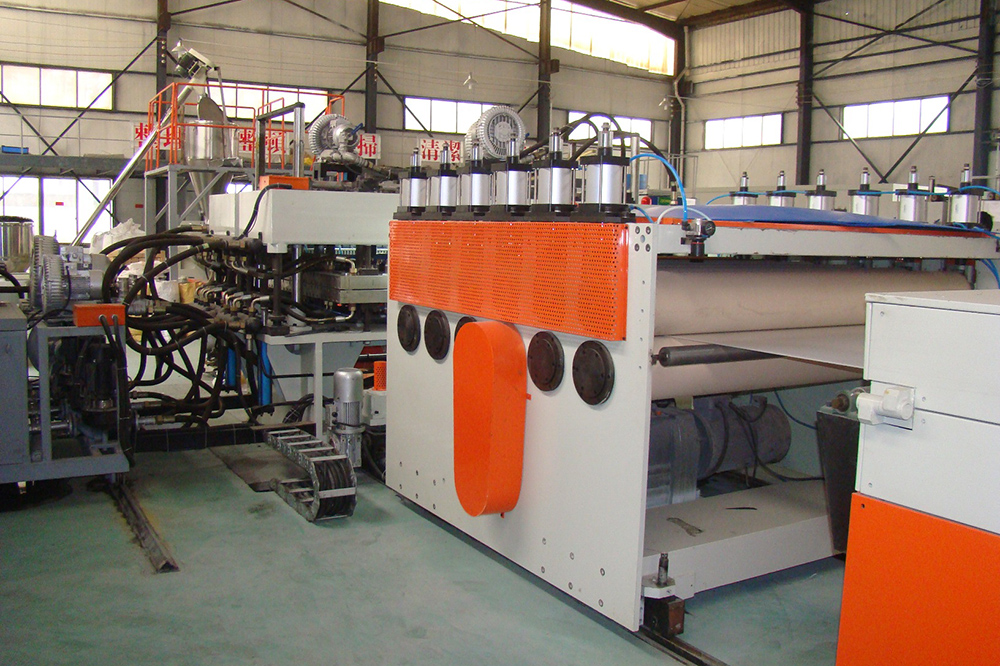

PP hollow sheet profile extrusion line pictures:
