  • Specification

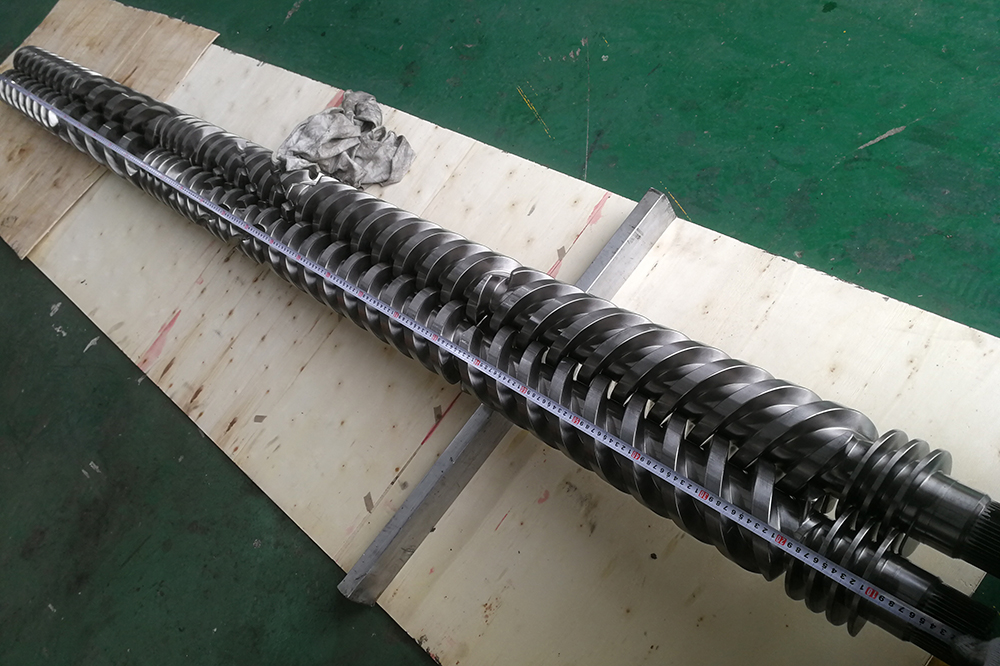

Screw and Barrel DS12.22


Kingz Machinery is specialized at high quality screw barrels. We are professional at Screw and barrel DS12.22, screw and barrel for Web DS12.22 twin screw extruder, screw and barrel for 125/22 and etc.


Weber DS12.22

Twin screw extruder

Screw diameter 125mm

LD 22/1


Technical specification:

Material: high quality 38CrMoAlA

Process: advanced nitriding process

Hardness after Hardening & Tempering: HB280-320

Nitrided hardness: HV900-1000(HV940=HRC68)

Nitrided case Depth: 0.45-0.8mm

Nitrided brittleness: Less than Grade 2

Surface roughness: Ra 0.4

Screw straightness: 0.015mm

Alloy hardness: HRC 50-65

Alloy depth: 0.8-2.0mm


Packing size and weight:

Screw and barrel DS12.22: 3450*475*470mm, 1263kg
