Specification

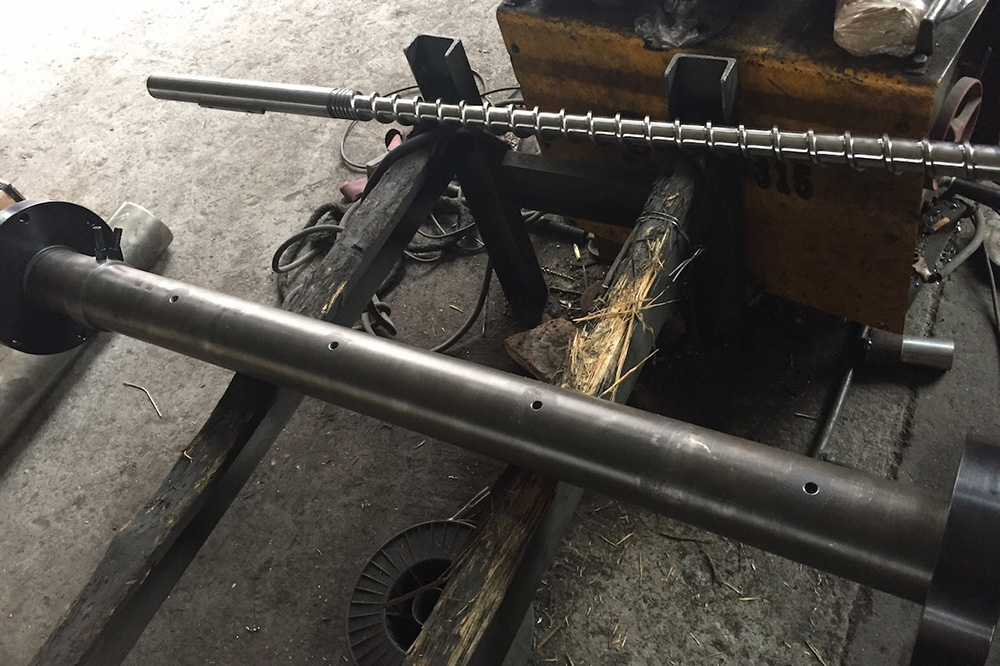

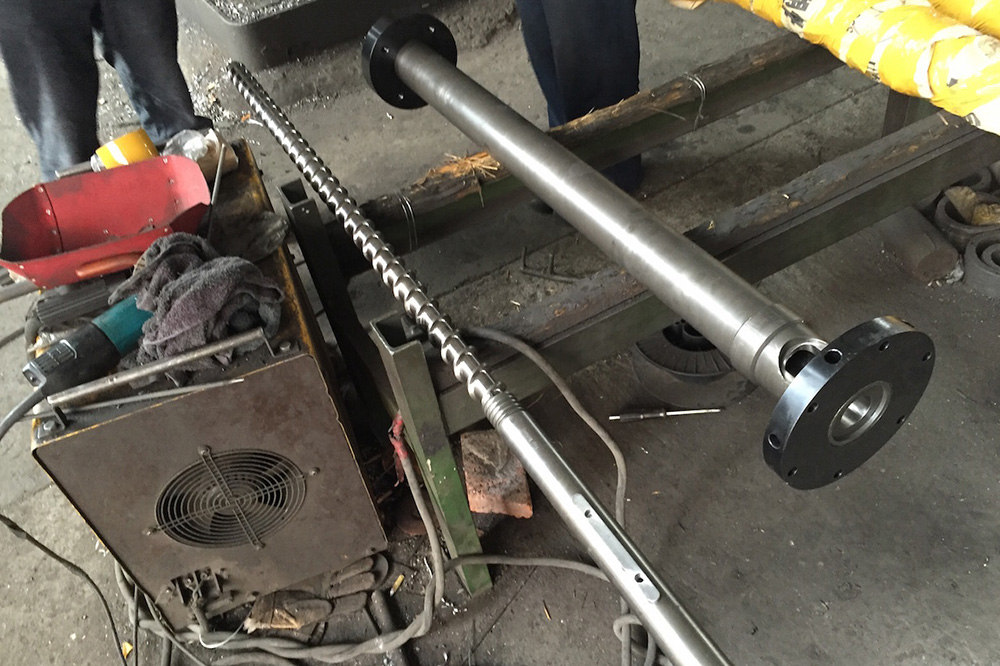

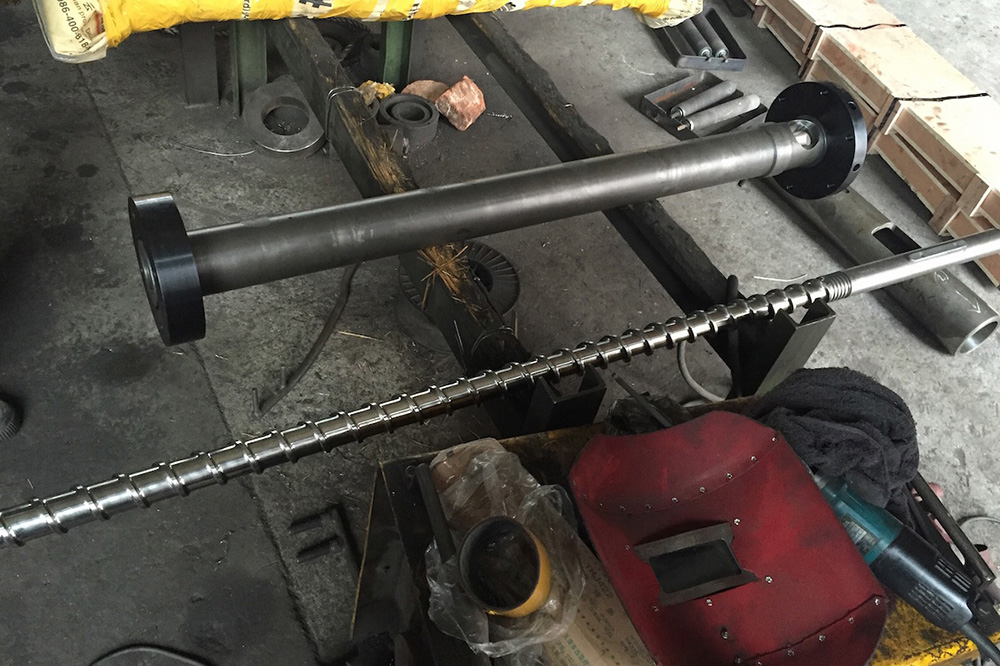

Screw and Barrel for IDE ME45

Kingz Machinery is specialized at high quality screw barrels, such as screw and barrel for IDE ME45, IDE ME45/3-25D, screw and barrel SJ45/25, IDE ME60 and etc.

Screw diameter: 45mm

L/D: 25:1

Motor: 8.5kw

Technical specification:

Material: high quality 38CrMoAlA

Process: advanced nitriding process

Hardness after Hardening & Tempering: HB280-320

Nitrided hardness: HV900-1000(HV940=HRC68)

Nitrided case Depth:0.45-0.8mm

Nitrided brittleness: Less than Grade 2

Surface roughness: Ra 0.4

Screw straightness: 0.015mm

Alloy hardness: HRC 50-65

Alloy depth:0.8-2.0mm

Packing size: 1740*260*310mm

Gross weight: 102kg.
