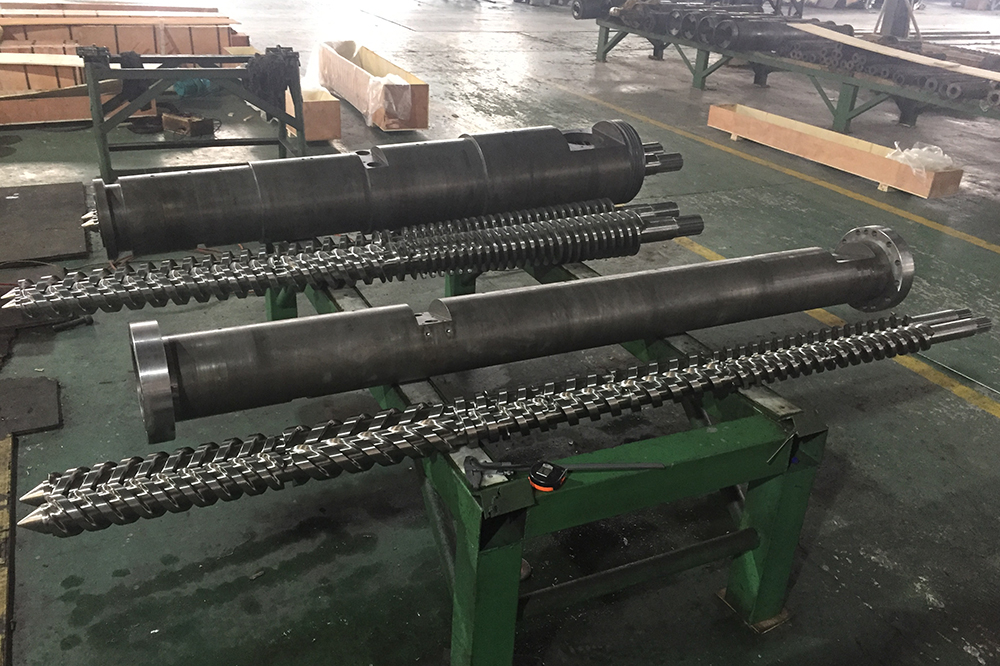

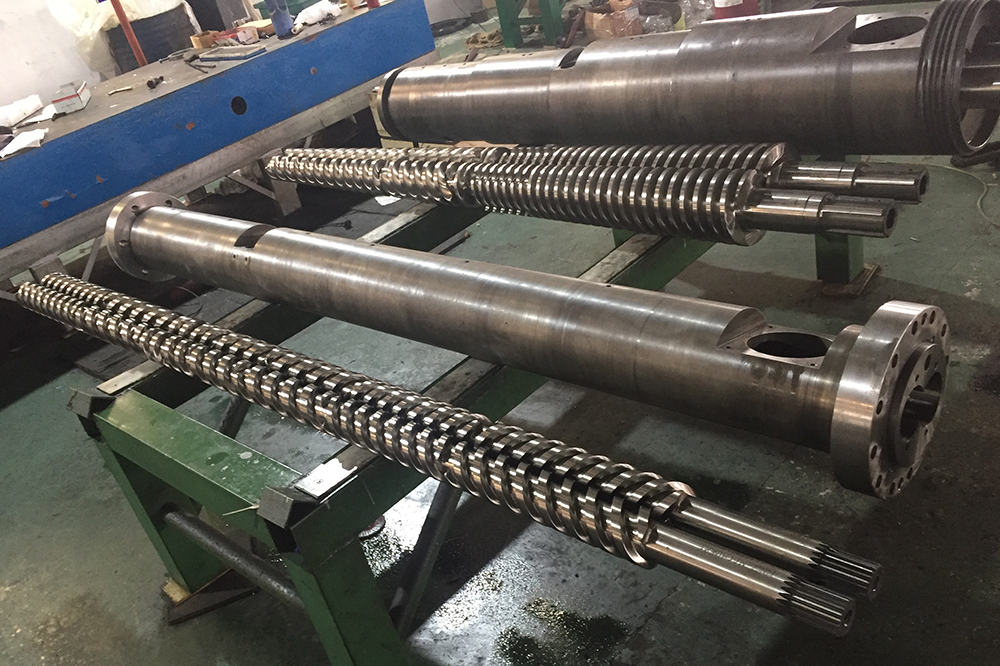

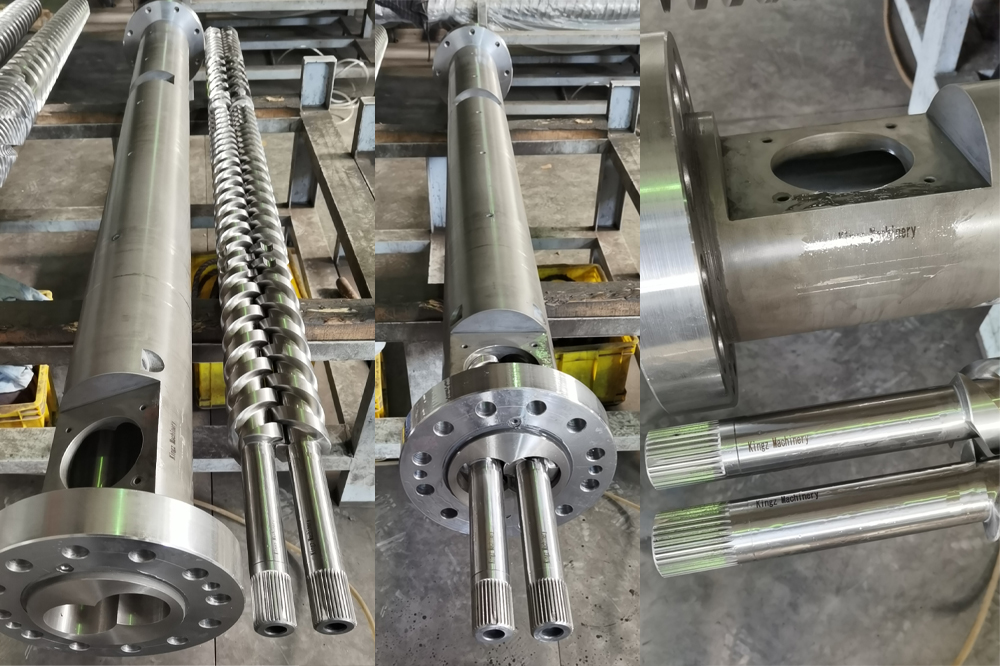

Screw and Barrel SJP75/28
Kingz Machinery is specialized at high quality screw barrels. We are professional at all kinds of twin screw and barrels, such as SJP75/26, SJP75/28, SJP75/32, SJP90/32, SJP93/22, SJP115/23, SJP115/28 and etc.
Technical specification:
Material: high quality 38CrMoAlA
Process: advanced nitriding process
Hardness after Hardening & Tempering: HB280-320
Nitrided hardness: HV900-1000(HV940=HRC68)
Nitrided case Depth:0.45-0.8mm
Nitrided brittleness: Less than Grade 2
Surface roughness: Ra 0.4
Screw straightness: 0.015mm
Alloy hardness: HRC 50-65
Alloy depth:0.8-2.0mm
Packing size:
SJP75/28 screw and barrel: 2480*380*420mm, 415kg.
