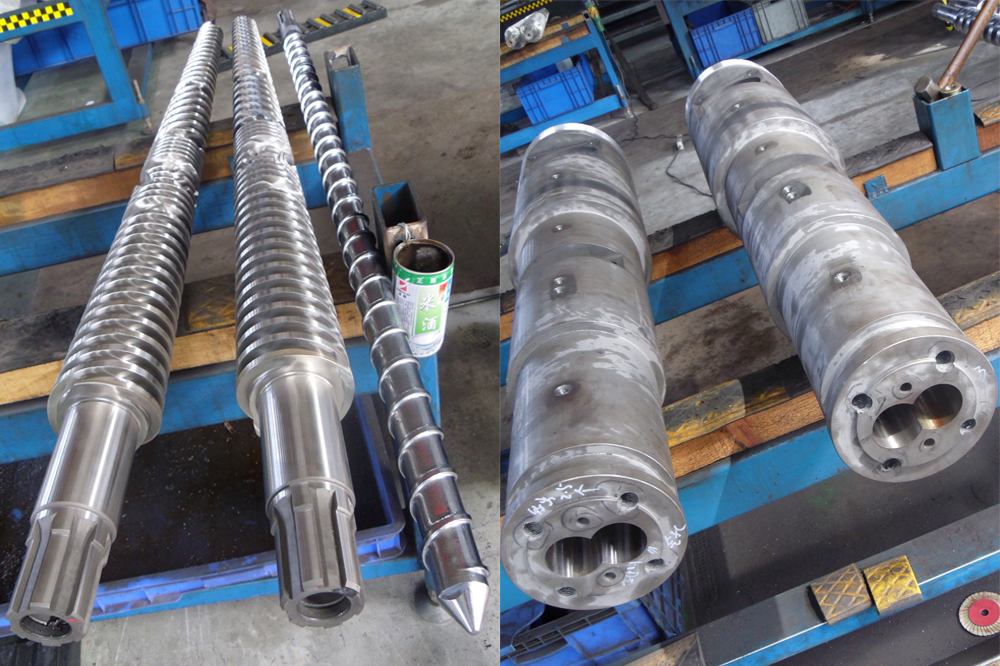

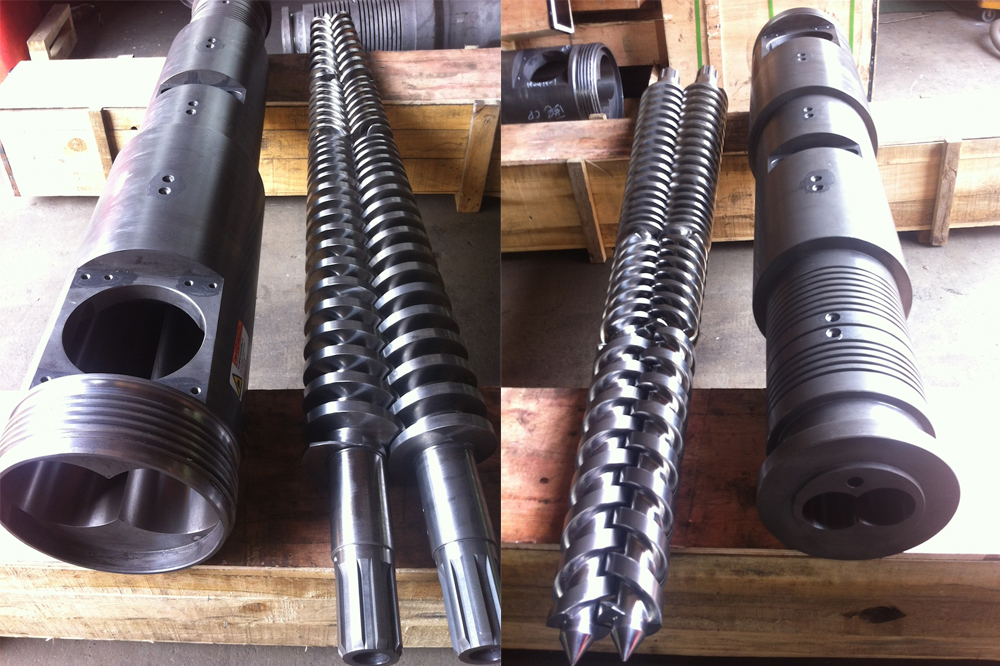

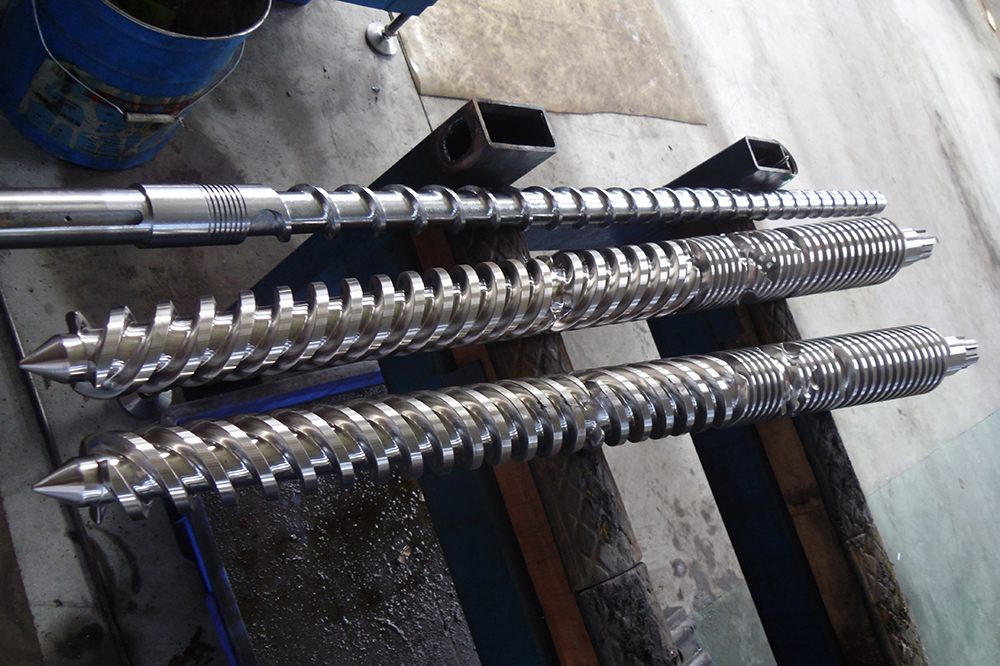

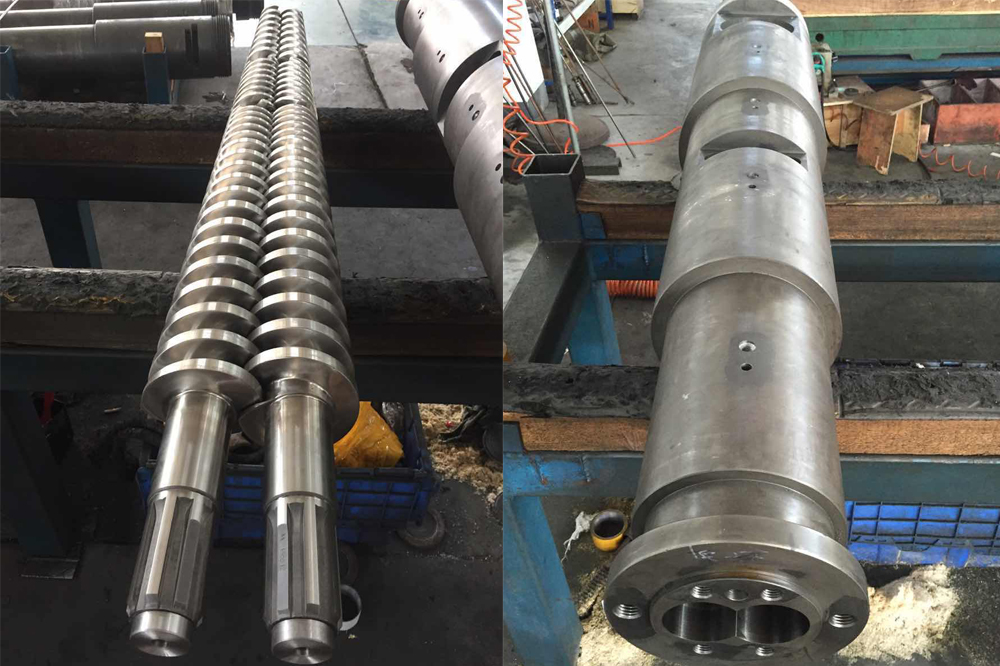

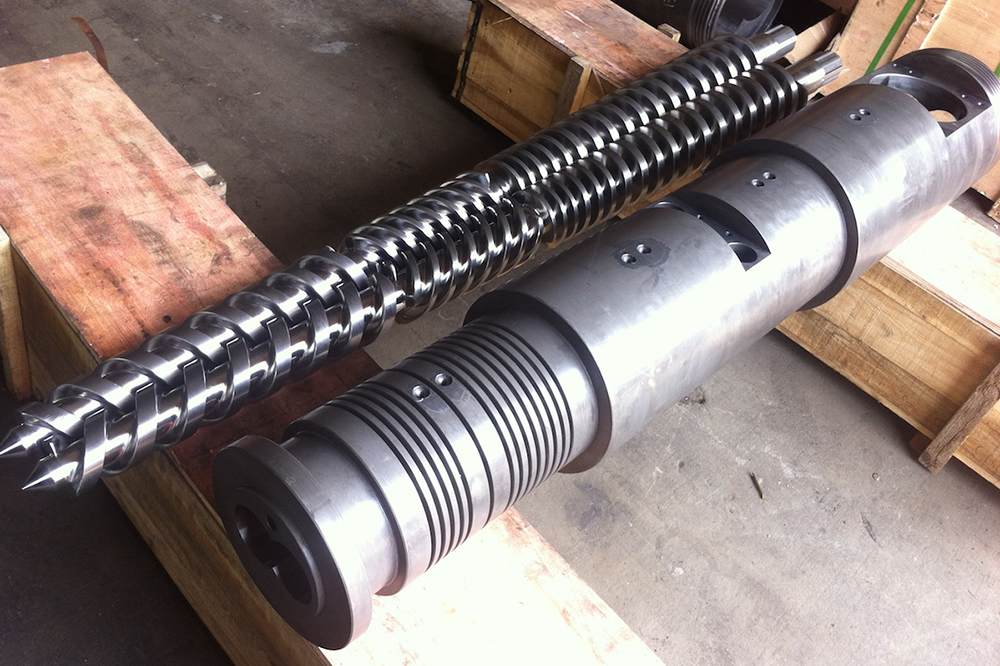

Screw and Barrel SJZ65/132
Kingz Machinery is specialized at high quality screw barrels. We are professional at all kinds of twin screw and barrels, such as SJZ45/90, SJZ51/105, SJZ55/110, SJZ55/120, SJZ65/132, SJZ65/138, SJZ80/156, SJZ92/188, SJZ110/220 and etc.
Technical specification:
Material: high quality 38CrMoAlA
Process: advanced nitriding process
Hardness after Hardening & Tempering: HB280-320
Nitrided hardness: HV900-1000(HV940=HRC68)
Nitrided case Depth:0.45-0.8mm
Nitrided brittleness: Less than Grade 2
Surface roughness: Ra 0.4
Screw straightness: 0.015mm
Alloy hardness: HRC 50-65
Alloy depth:0.8-2.0mm
Packing size:
Packing together:
SJZ65/132 screw and barrel: 1800*350*350mm, 425kg.
Packing separately:
SJZ65/132 screw: 1800*220*300mm, 128kg
SJZ65/132 barrel: 1560*330*340mm, 346kg
