Specification

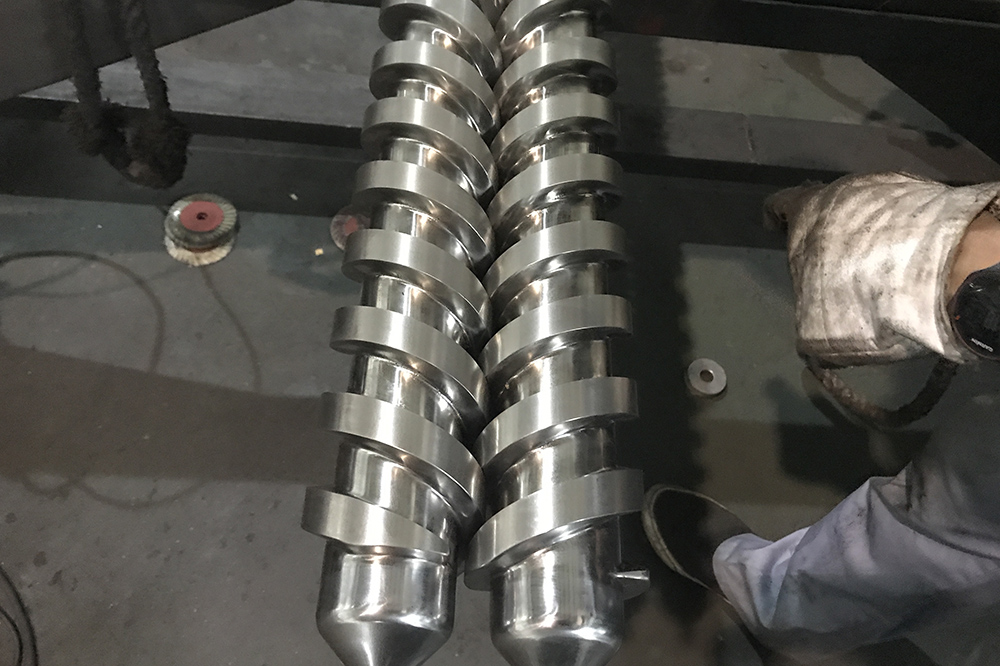

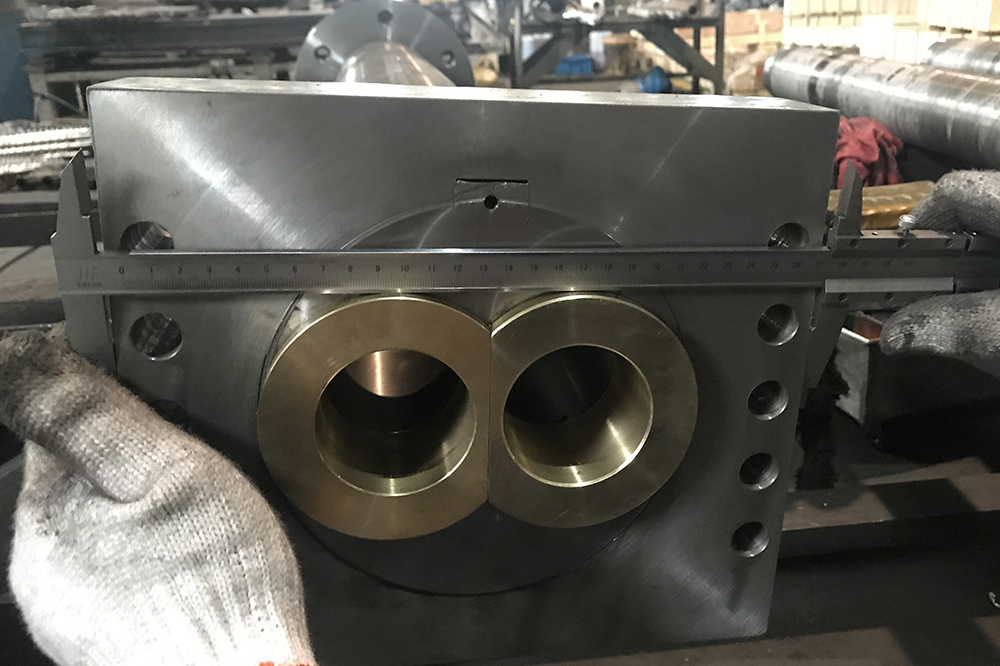

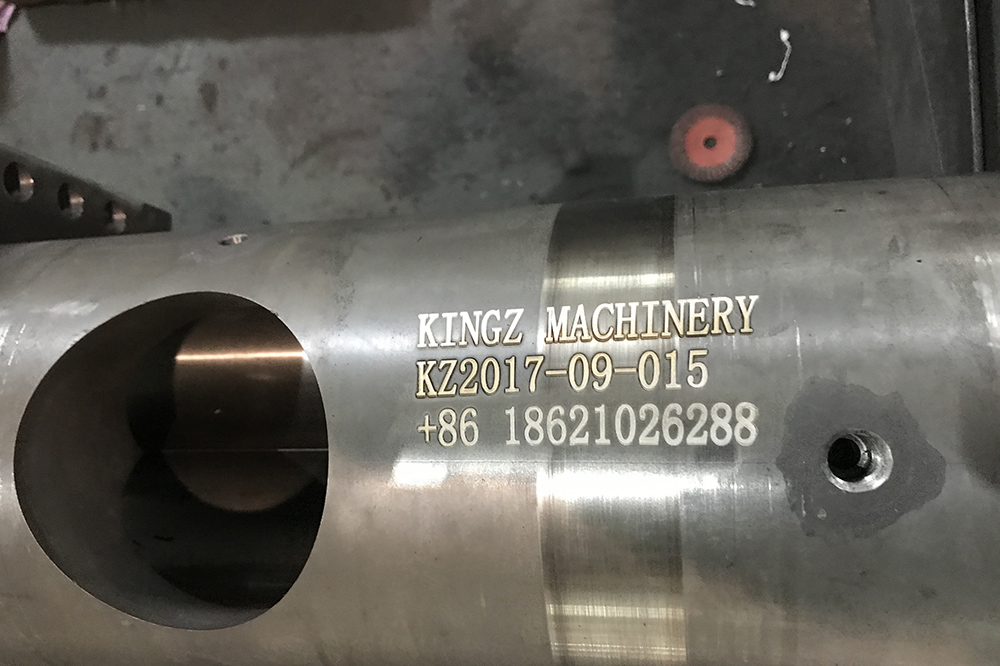

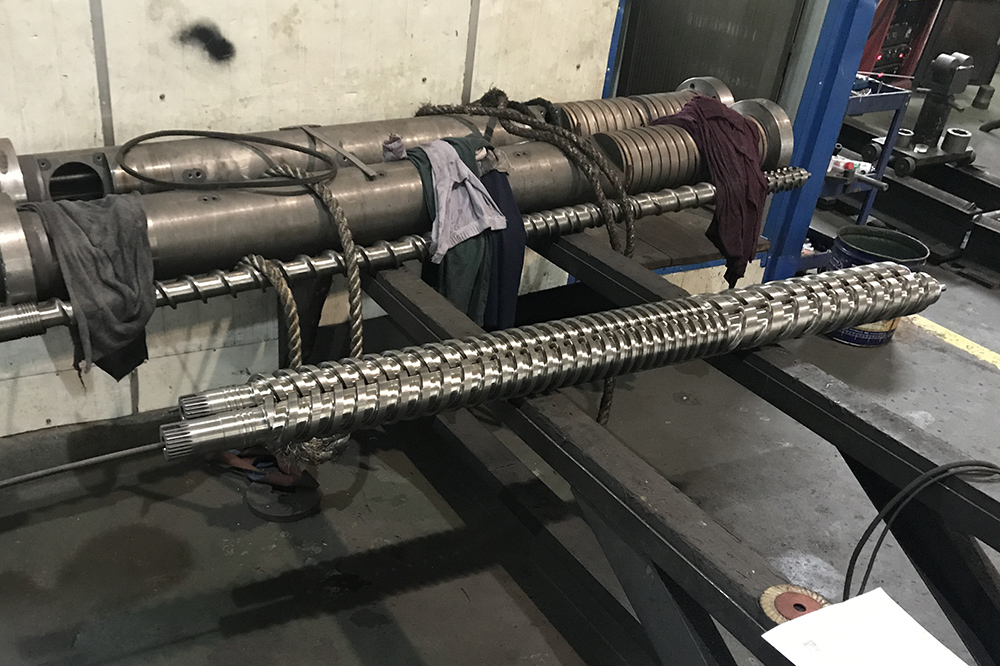

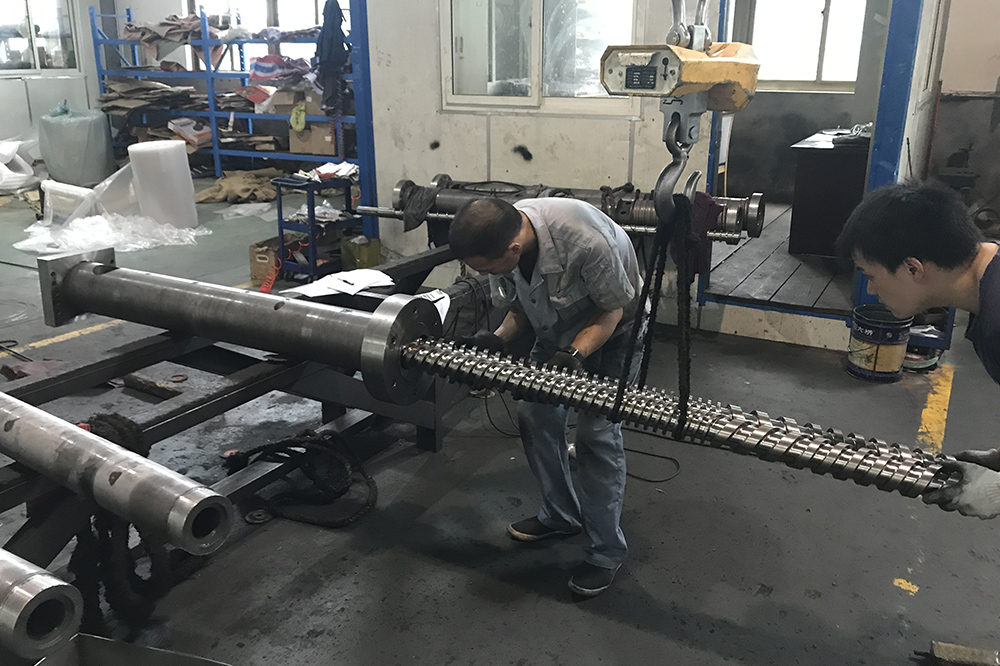

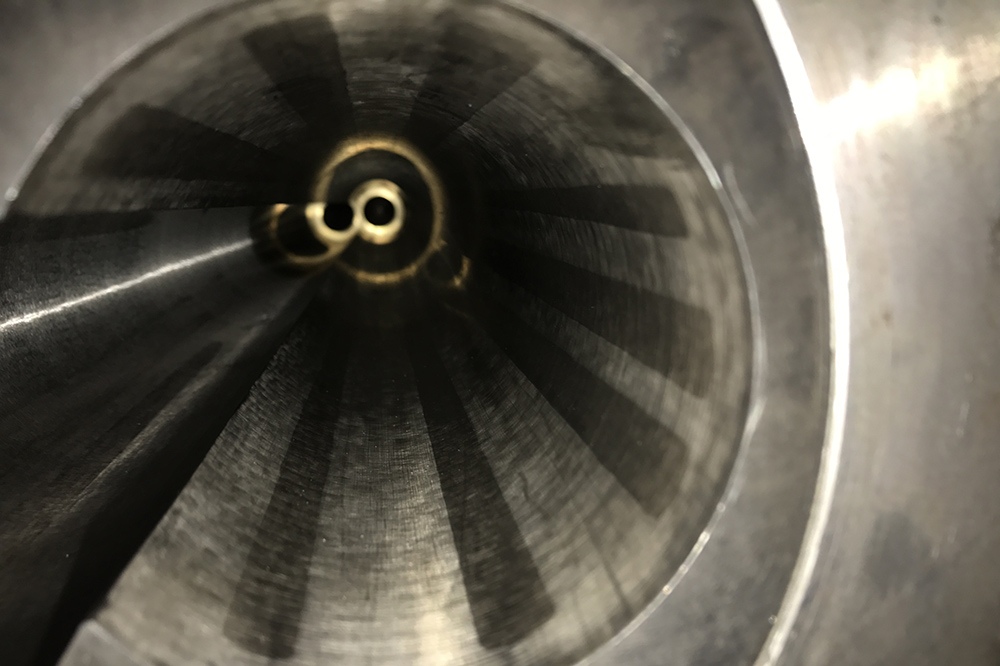

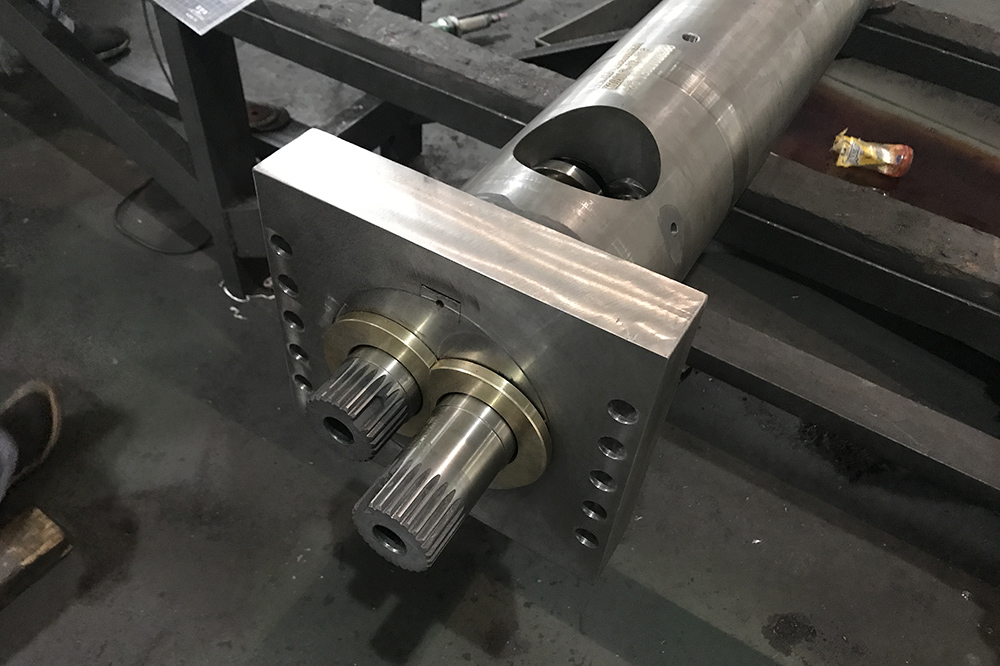

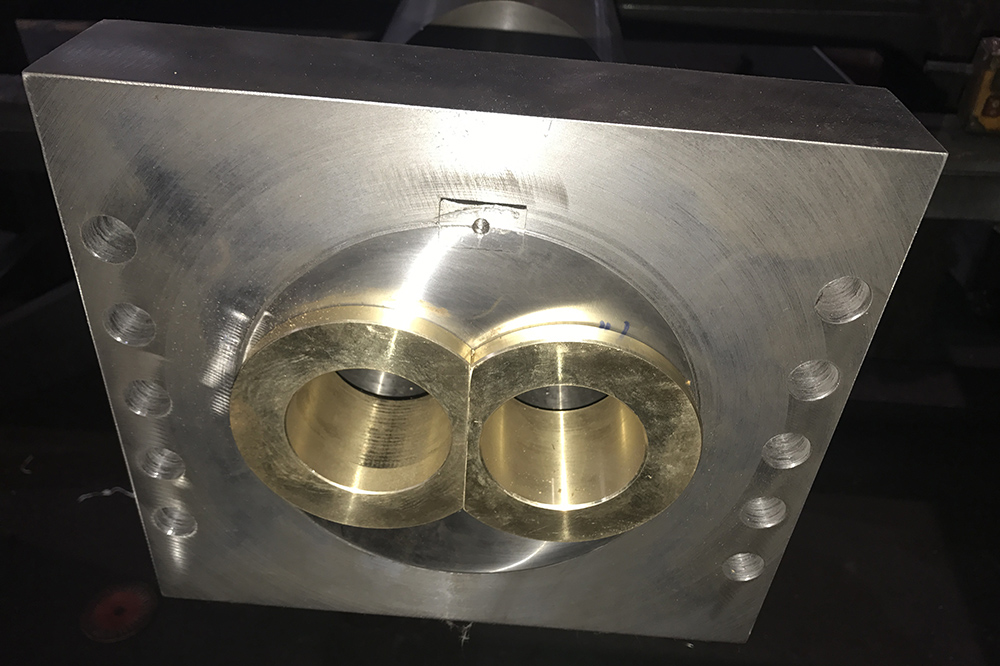

Screw and Barrel Weber DS85

Kingz Machinery is specialized at high quality screw barrels, such as Screw and barrel DS85, screw and barrel Weber DS85, screw and barrel for Weber DS85 twin screw extruder, screw and barrel 85-17D, screw and barrel 85/18,…..

Weber DS85

Twin screw extruder

Screw diameter 85mm

LD 17/1

Technical specification:

Screw’s and barrel’s material: high quality alloy steel: 38CrMoAlA;

At material outlet section: with hard alloy slots. Slot length: 300mm

Process: advanced nitriding process

Hardness after Hardening & Tempering: HB280-320

Nitrided hardness: HV900-1000(HV940=HRC68)

Nitrided case Depth:0.45-0.8mm

Nitrided brittleness: Less than Grade 2

Surface roughness: Ra 0.4

Screw straightness: 0.015mm

Alloy hardness: HRC 50-65

Alloy depth:0.8-2.0mm

Packing size: 1720*395*455mm

Gross weight: 338kg.
